(Solved): (35%) We then need a push-pull circuit as the output stage in between the LC circuit and V_(triangul ...

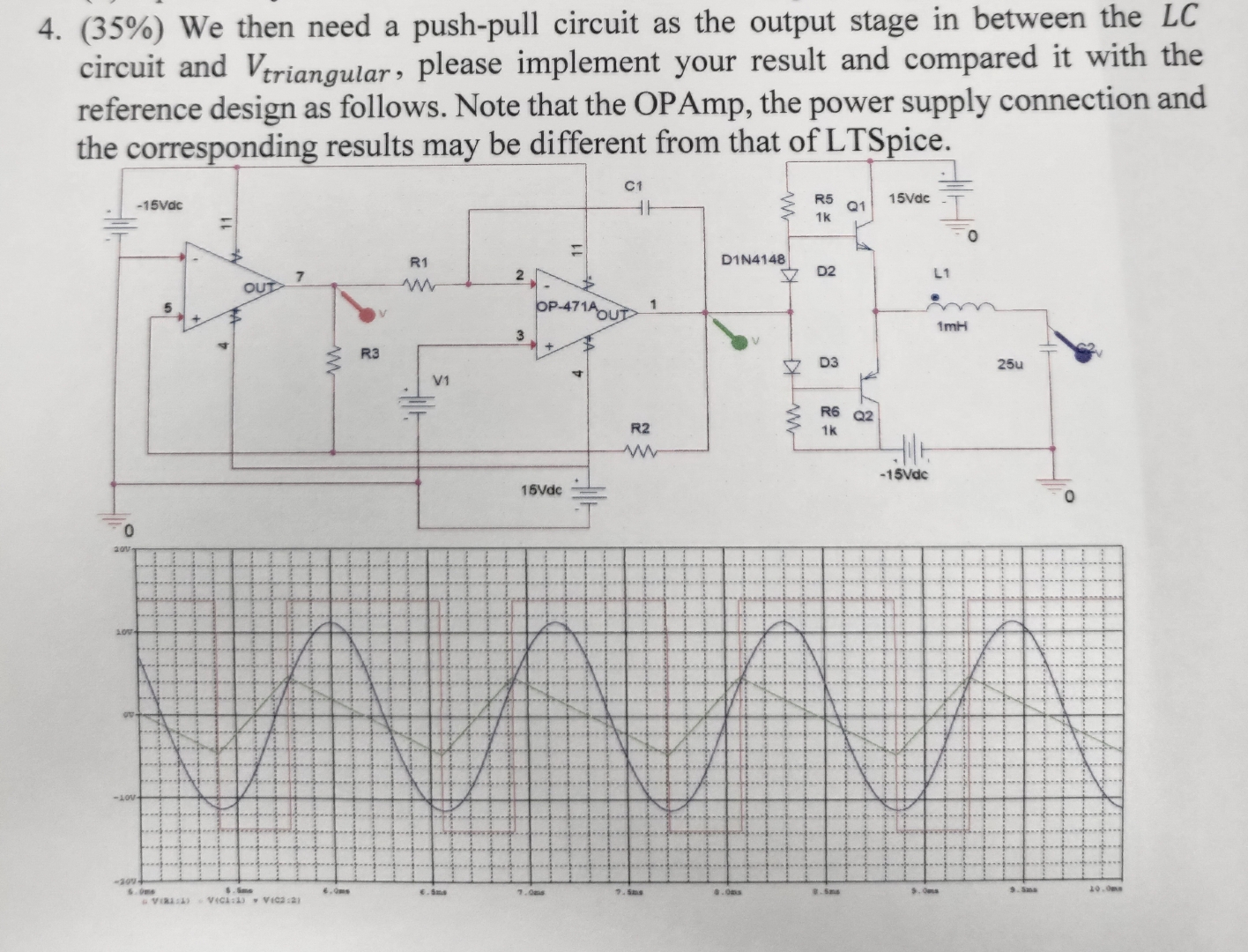

(35%)We then need a push-pull circuit as the output stage in between the
LCcircuit and
V_(triangular ), please implement your result and compared it with the reference design as follows. Note that the OPAmp, the power supply connection and the corresponding results may be different from that of LTSpice.
