(Solved): 4. A sinusoidal acceleration function is used for the rise and fall segments for a doubledwell cam. ...

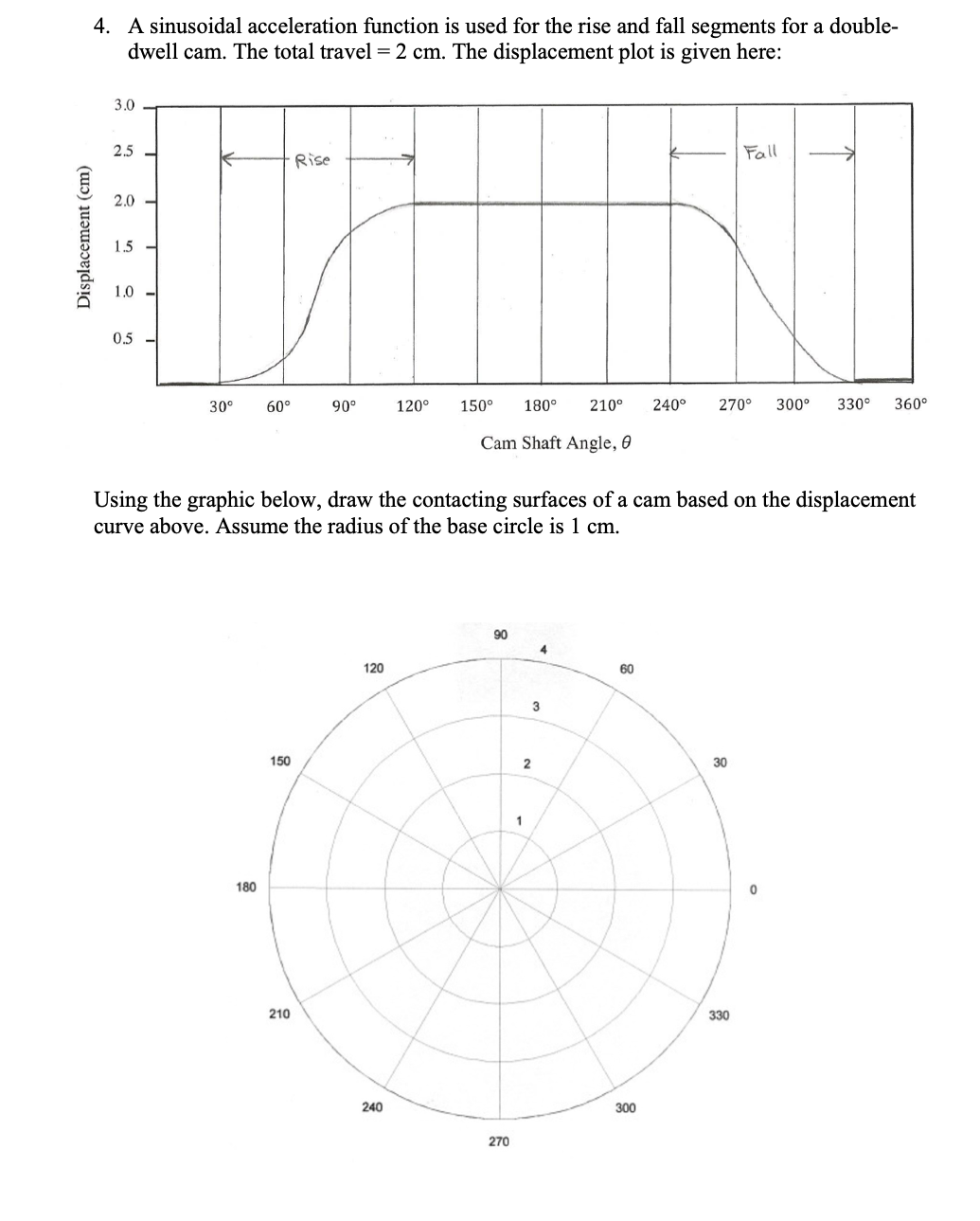

4. A sinusoidal acceleration function is used for the rise and fall segments for a doubledwell cam. The total travel $=2\mathrm{cm}$. The displacement plot is given here: Using the graphic below, draw the contacting surfaces of a cam based on the displacement curve above. Assume the radius of the base circle is $1\mathrm{cm}$.
