(Solved): 8.18 Find the power dissipated in diode D, and the power dissipated in R in Figure P8.18. Use the ex ...

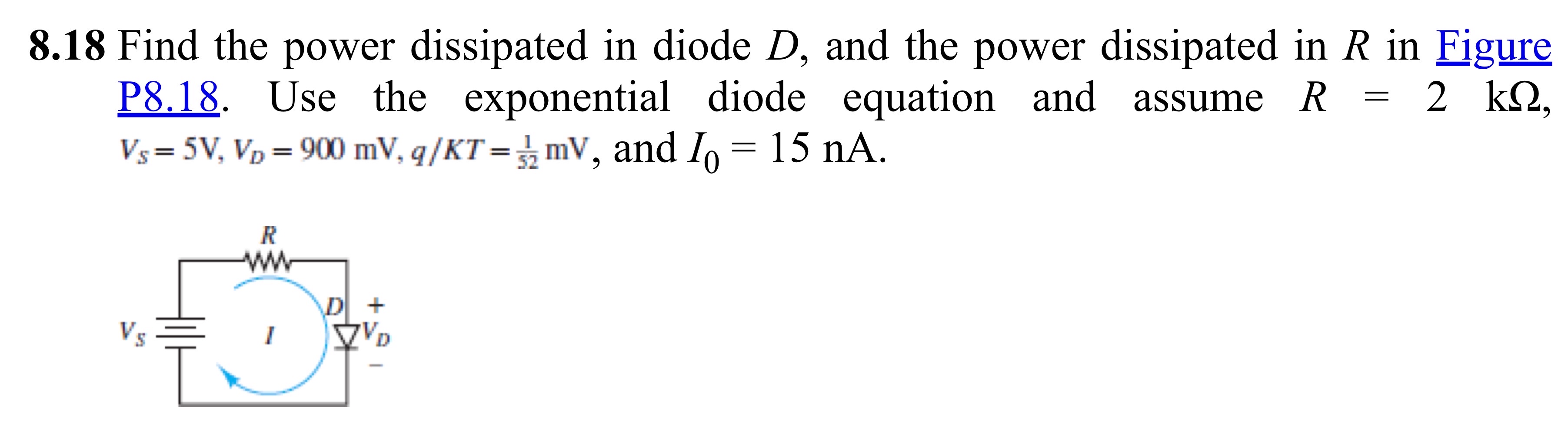

8.18 Find the power dissipated in diode
D, and the power dissipated in
Rin Figure P8.18. Use the exponential diode equation and assume
R=2k\Omega ,
V_(s)=5V,V_(D)=900mV,(q)/(K)T=(1)/(52)mV, and
I_(0)=15nA.
