(Solved): 8. Find the Thevenins Equivalent Circuit between the terminals A and B of the circuit in the figure ...

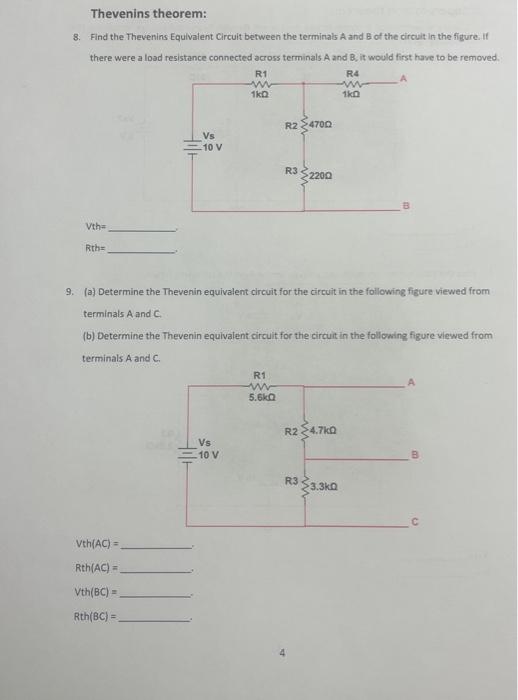

8. Find the Thevenins Equivalent Circuit between the terminals $\mathrm{A}$ and $\mathrm{B}$ of the circuit in the figure. If there were a load resistance connected across terminals A and B, it would first have to be removed. $\begin{array}{l}\text{ Vth= }\\ \text{ Rth }=\end{array}$ 9. (a) Determine the Thevenin equivalent circuit for the circuit in the following fisure viewed from terminats $\mathrm{A}$ and $\mathrm{C}$. (b) Determine the Thevenin equivalent circuit for the circuit in the following figure viewed from terminals $\mathrm{A}$ and $\mathrm{C}$. $\begin{array}{l}\text{ Vth }(AC)=\\ \text{ Rth }(AC)=\\ \mathrm{Vth}(BC)=\\ \text{ Rth }(BC)=\end{array}$
