(Solved): Figure 1.0b: Op-Amp Equivalent Circuit View Figure 3.0: Non-Inverting Configuration (i) Step 2: As ...

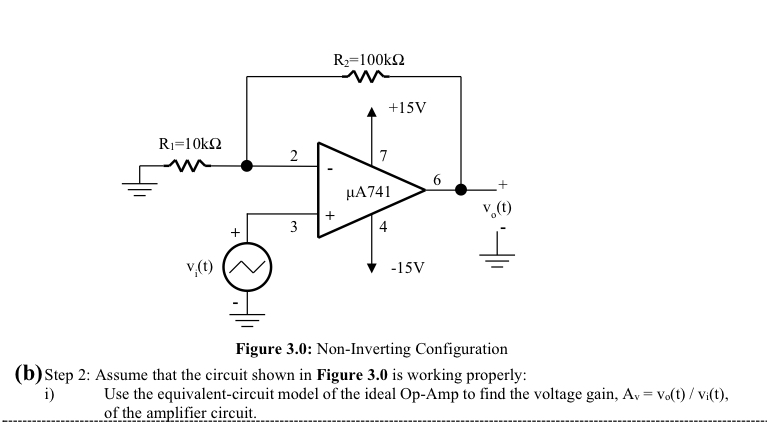

Figure 1.0b: Op-Amp Equivalent Circuit View Figure 3.0: Non-Inverting Configuration (i) Step 2: Assume that the circuit shown in Figure 3.0 is working properly: iOp-Amp to find the voltage gain, A_(v)=v_(o)(t)/(v_(i))(t), of the amplifier circuit. ii)Use the equivalent-circuit model of the \mu A741 shown in Figure 1.0b instead to find Av. Figure 1.0b: Op-Amp Equivalent Circuit View
