(Solved): For the given Zener voltage regulator circuit, Rs 1000 and Zener current rating is 15mA. Over what r ...

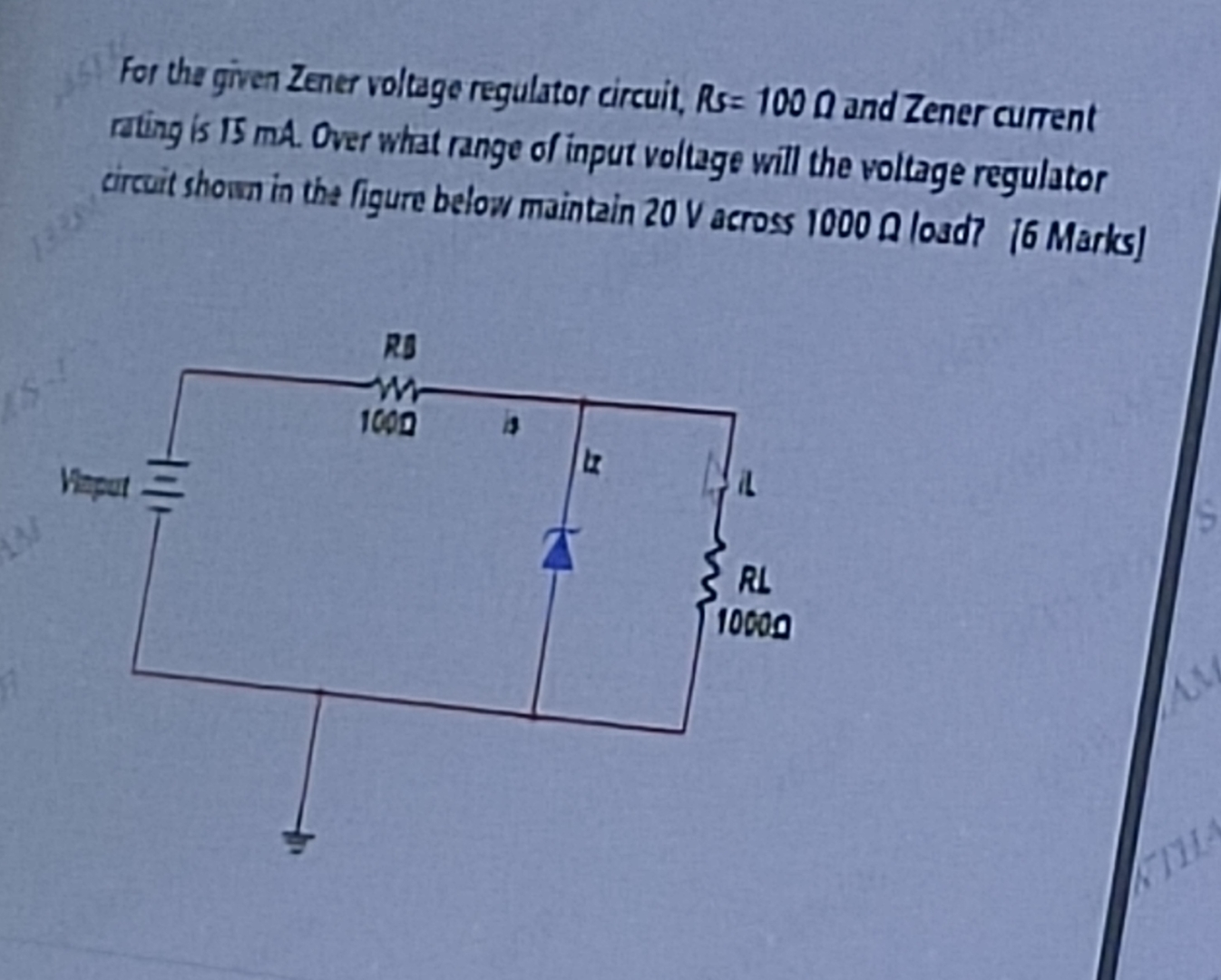

For the given Zener voltage regulator circuit, Rs 1000 and Zener current rating is

15mA

. Over what range of input voltage will the voltage regulator circuit shown in the figure below maintain 20 V across

1000Q

losd7 76 Marks]
