(Solved): For the ideal transformer circuit shown below where Vs=170 V, R1=9, R2=16, Xc=16, n=20. Ple ...

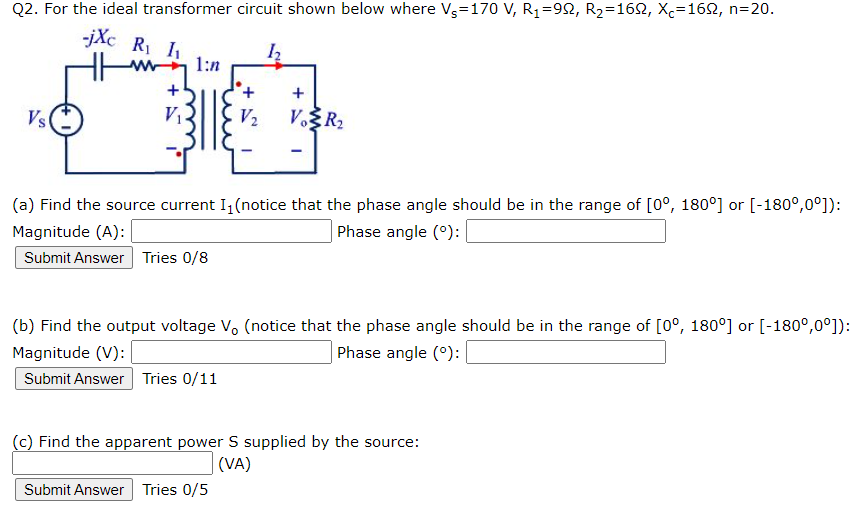

Q2. For the ideal transformer circuit shown below where ${\mathrm{V}}_{\mathrm{s}}=170\mathrm{V},{\mathrm{R}}_1=9?,{\mathrm{R}}_2=16?,{\mathrm{X}}_{\mathrm{c}}=16?,\mathrm{n}=20$. (a) Find the source current ${\mathrm{I}}_1$ (notice that the phase angle should be in the range of $\left[0^{?},180^{?}\right]$ or $\left[?180^{?},0^{?}\right]$ ): Magnitude (A): Phase angle $\left({}^{?}\right)$ : Tries $0/8$ (b) Find the output voltage ${\mathrm{V}}_0$ (notice that the phase angle should be in the range of $\left[0^{?},180^{?}\right]$ or $\left[?180^{?},0^{?}\right]$ ): Magnitude (V): Phase angle $\left({}^{?}\right)$ : Tries $0/11$ (c) Find the apparent power S supplied by the source: (VA) Tries $0/5$
