(Solved): In a Hartnell governor, the radius of rotation is 7 cm when the speed is 500 rpm . At t ball arm is ...

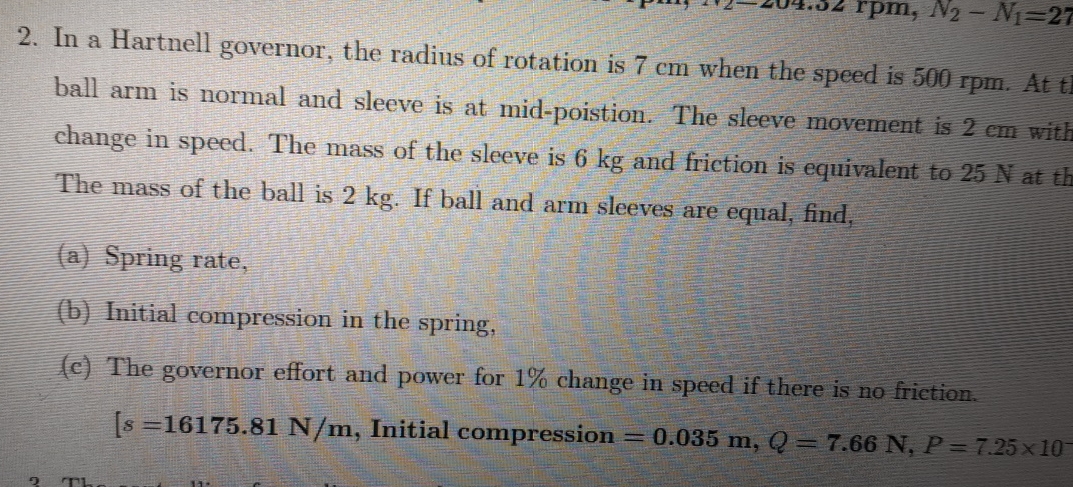

In a Hartnell governor, the radius of rotation is 7 cm when the speed is 500 rpm . At
tball arm is normal and sleeve is at mid-poistion. The sleeve movement is 2 cm with change in speed. The mass of the sleeve is 6 kg and friction is equivalent to 25 N at th The mass of the ball is 2 kg . If ball and arm sleeves are equal, find, (a) Spring rate, (b) Initial compression in the spring, (c) The governor effort and power for
1%change in speed if there is no friction. , Initial compression
=0.035m,Q=7.66N,P=7.25\times 10^(-)
