(Solved): In the circuit shown in the figure, the inductor has inductance L=5.00H and negligible internal res ...




student submitted image, transcription available below
student submitted image, transcription available below
student submitted image, transcription available below

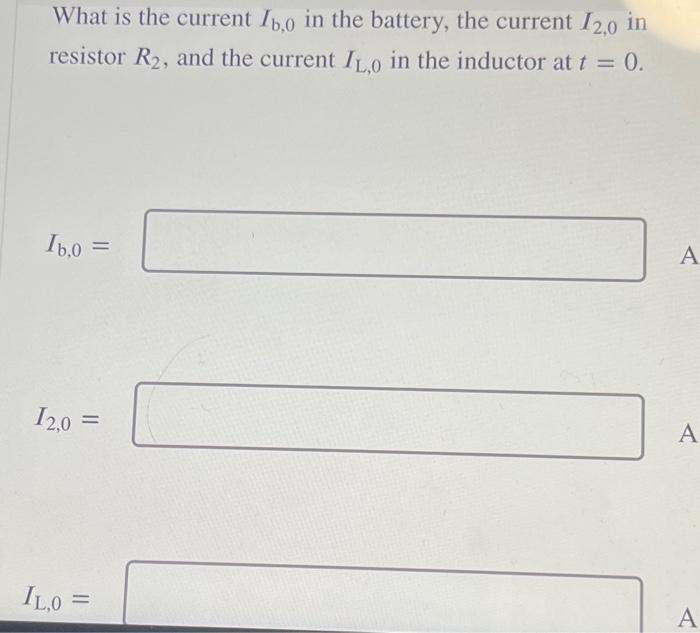

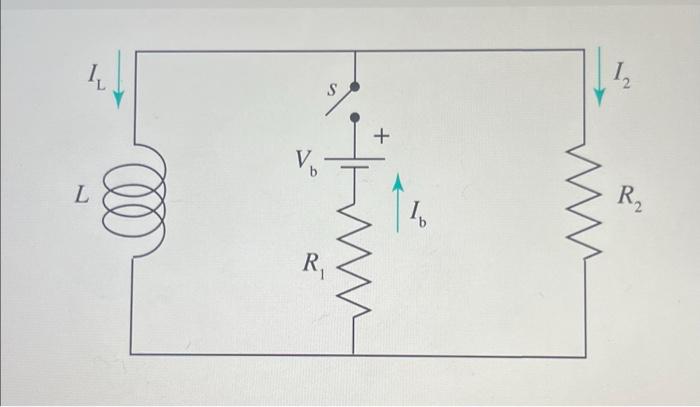

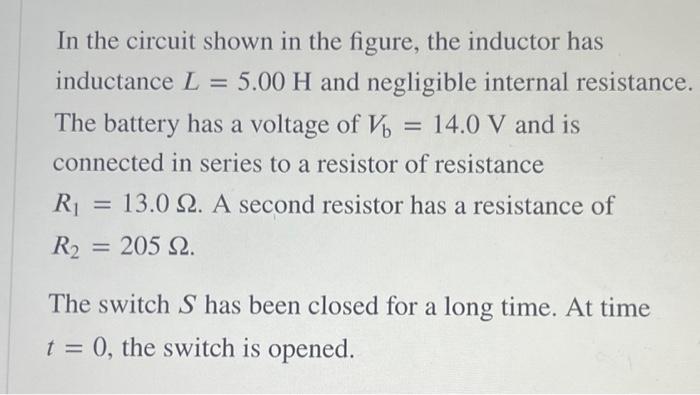

In the circuit shown in the figure, the inductor has inductance and negligible internal resistance The battery has a voltage of and is connected in series to a resistor of resistance . A second resistor has a resistance of . The switch has been closed for a long time. At time , the switch is opened. What is the current in the battery, the current in resistor , and the current in the inductor at . What is the current in the battery, the current in resistor , and the current in the inductor after the switch is opened for a long time (i.e., ).
