(Solved): Problem 7: Consider a ring oscillator consisting of five inverters, each having \( t_{\text {PLH }}= ...

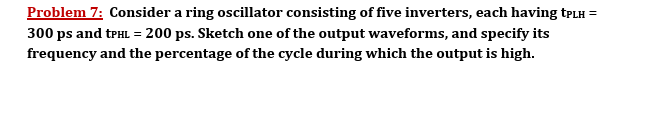

Problem 7: Consider a ring oscillator consisting of five inverters, each having \( t_{\text {PLH }}= \) 300 ps and tPHL \( =200 \) ps. Sketch one of the output waveforms, and specify its frequency and the percentage of the cycle during which the output is high.
