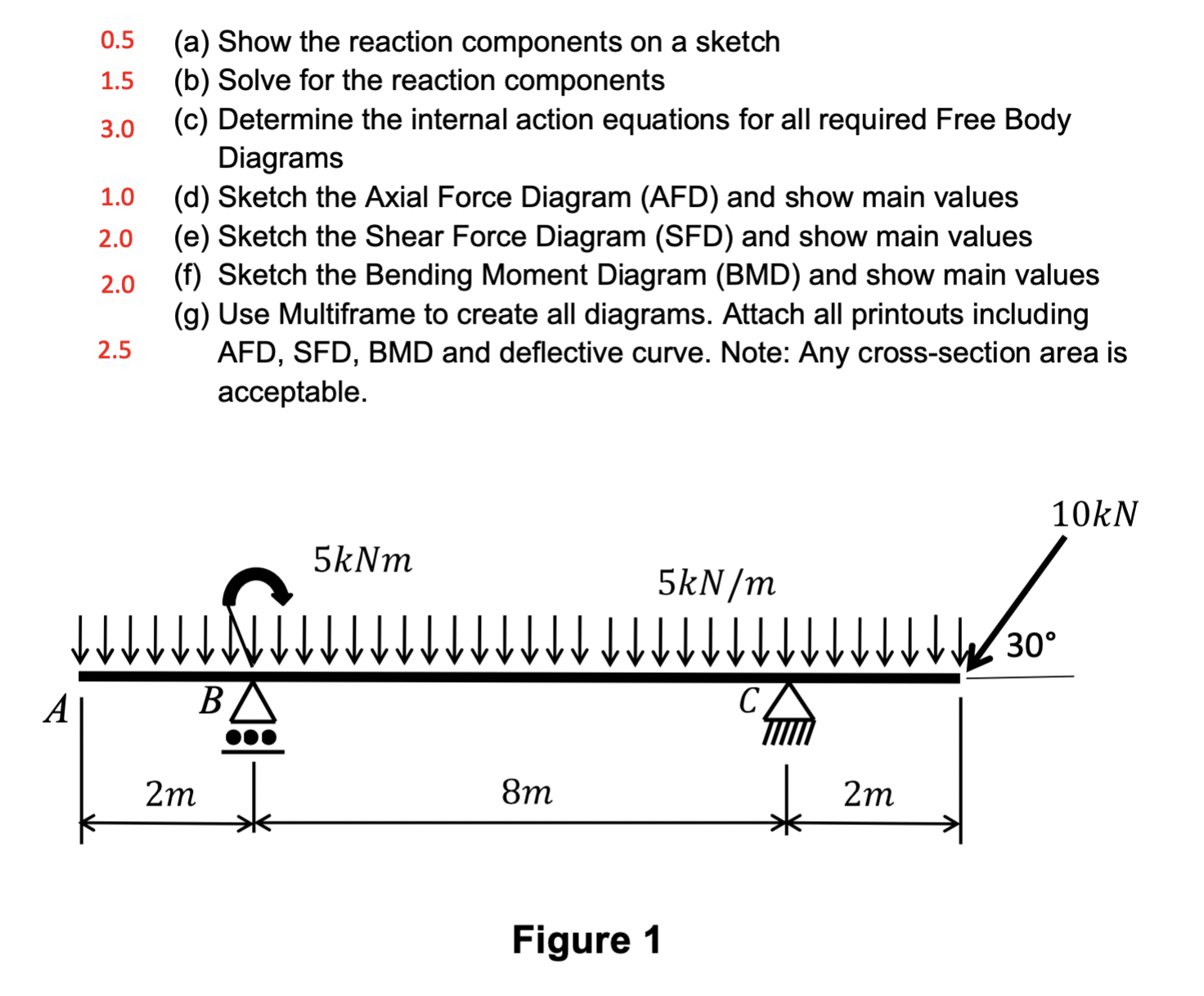

0.5 (a) Show the reaction components on a sketch 1.5 (b) Solve for the reaction components 3.0 (c) Determine the internal action equations for all required Free Body Diagrams 1.0 (d) Sketch the Axial Force Diagram (AFD) and show main values 2.0 (e) Sketch the Shear Force Diagram (SFD) and show main values 2.0 (f) Sketch the Bending Moment Diagram (BMD) and show main values (g) Use Multiframe to create all diagrams. Attach all printouts including 2.5 AFD, SFD, BMD and deflective curve. Note: Any cross-section area is acceptable. Figure 1
