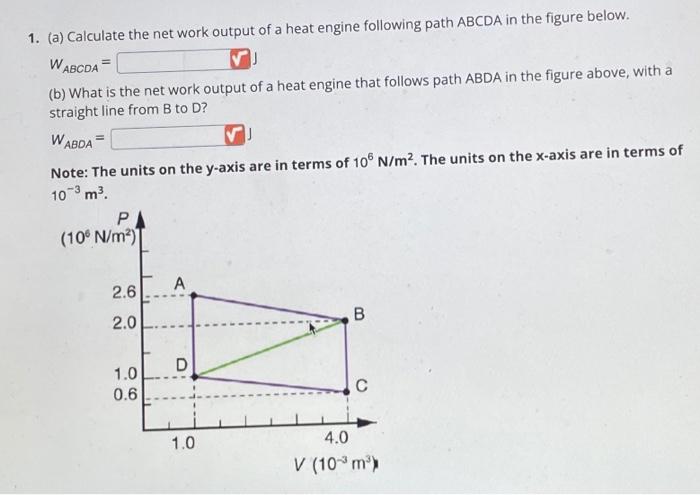

1. (a) Calculate the net work output of a heat engine following path $A BC D A$ in the figure below. $W_{A BC D A} =$ (b) What is the net work output of a heat engine that follows path ABDA in the figure above, with a straight line from B to $D$ ? $W_{A B D A} =$ Note: The units on the $y$ -axis are in terms of $1 0^{6} N / m^{2}$ . The units on the $x$ -axis are in terms of $1 0^{? 3} m^{3}$ .

Question

1. (a) Calculate the net work output of a heat engine following path

A BC D A

in the figure below.

W_{A BC D A} =

(b) What is the net work output of a heat engine that follows path ABDA in the figure above, with a straight line from B to

D

?

W_{A B D A} =

Note: The units on the

y

-axis are in terms of

1 0^{6} N / m^{2}

. The units on the

x

-axis are in terms of

1 0^{? 3} m^{3}

.
