(Solved): 1.(a). Explain the working principle of any level sensor of depends on the Hydrostatic Pressure met ...

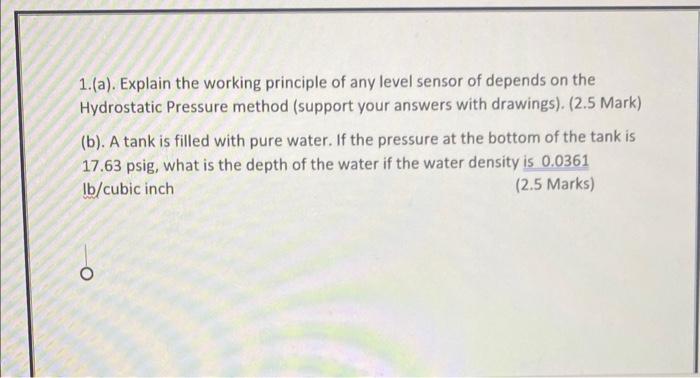

1.(a). Explain the working principle of any level sensor of depends on the Hydrostatic Pressure method (support your answers with drawings). (2.5 Mark) (b). A tank is filled with pure water. If the pressure at the bottom of the tank is \( 17.63 \mathrm{psig} \), what is the depth of the water if the water density is \( 0.0361 \) \( \mathrm{lb} \) /cubic inch (2.5 Marks)
Expert Answer
1(a) Bubbler Level Sensor has a tube with an opening below the surface of the liquid level. A fixed-rate airflow passes through the tube and out of the opening. Pressure in the tube is proportional to the depth (and density) of the liquid over the ou
