1. Construct a truth table and draw a circuit for the following Boolean expressions:
a) Y = ABC + AB C
2. Show the truth tabl

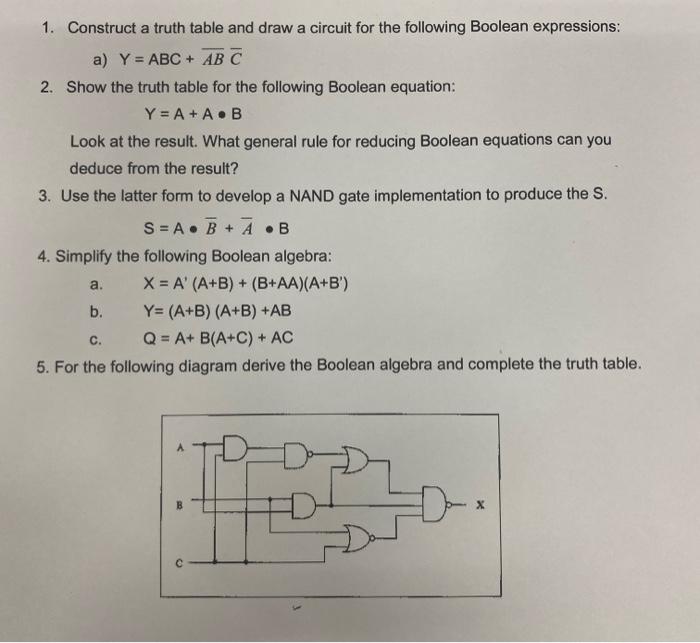

1. Construct a truth table and draw a circuit for the following Boolean expressions: a) Y = ABC + AB C 2. Show the truth table for the following Boolean equation: Y=A+A B Look at the result. What general rule for reducing Boolean equations can you deduce from the result? 3. Use the latter form to develop a NAND gate implementation to produce the S. S = A B + A . B 4. Simplify the following Boolean algebra: a. X = A' (A+B) + (B+AA)(A+B') b. Y= (A+B) (A+B) +AB C. Q=A+ B(A+C) + AC 5. For the following diagram derive the Boolean algebra and complete the truth table. D- -x 03 05 C
