(Solved): 1. For each of the circuits shown below calculate the complex current (magnitude and angle) drawn. ...

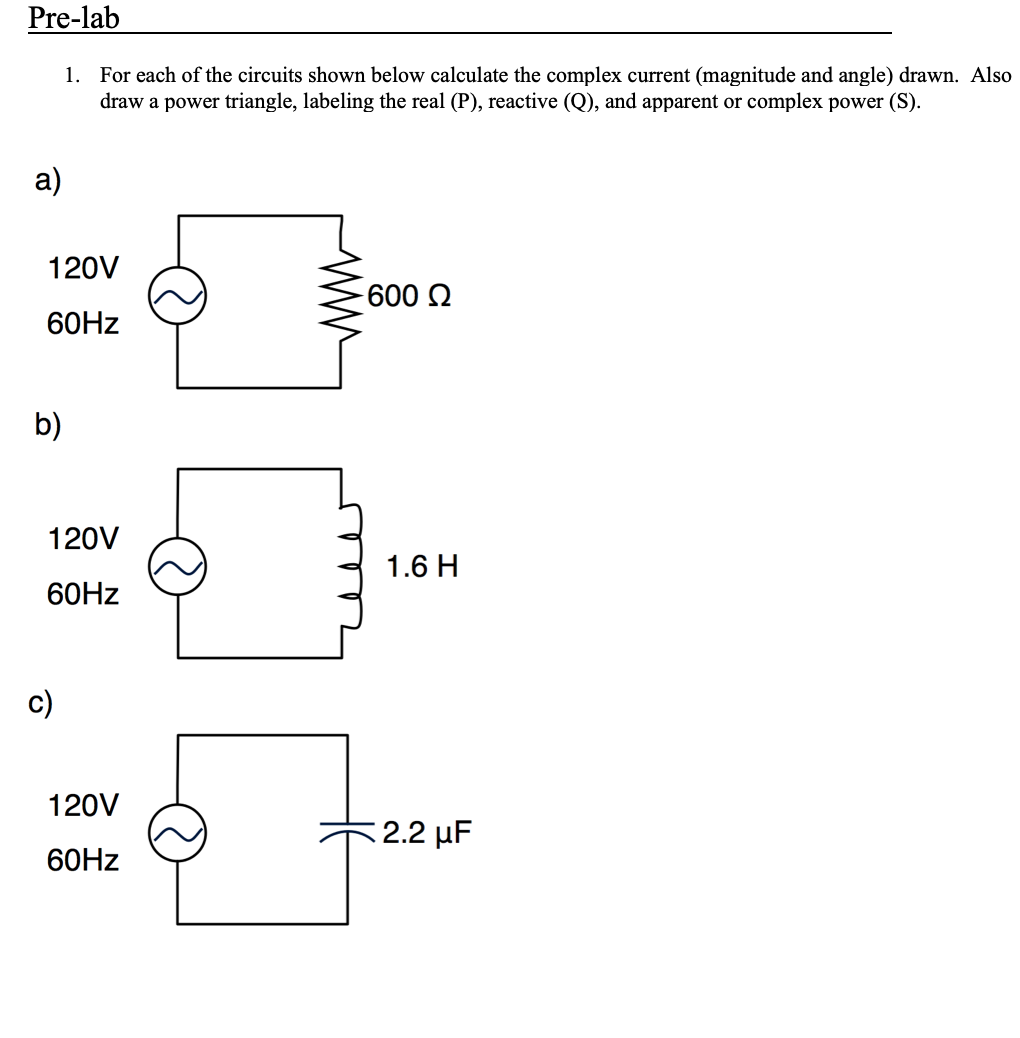

1. For each of the circuits shown below calculate the complex current (magnitude and angle) drawn. Also draw a power triangle, labeling the real \( (\mathrm{P}) \), reactive \( (\mathrm{Q}) \), and apparent or complex power \( (\mathrm{S}) \). b)
