???????1. Refer to the following state diagrams: (2 points)
a. Identify which machine is Moore and Mealy
b. For both machines, start

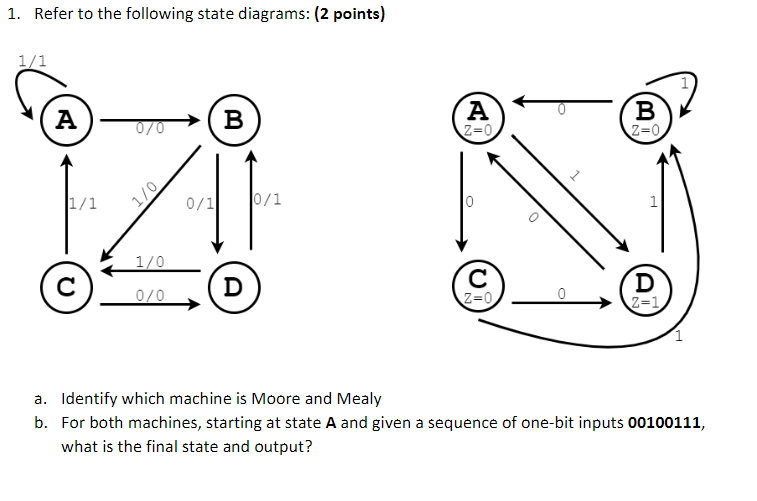

1. Refer to the following state diagrams: (2 points) a. Identify which machine is Moore and Mealy b. For both machines, starting at state and given a sequence of one-bit inputs 00100111, what is the final state and output?


We have an Answer from Expert

View Expert Answer

Expert Answer


A) First FSM is mealy machine because the output of this system depends on the input and present stateThe secon
