(Solved): 1 ! Required information 1 of 3 In the figure, an external force vec(F) is holding a bob of mass ...
1
!Required information 1 of 3

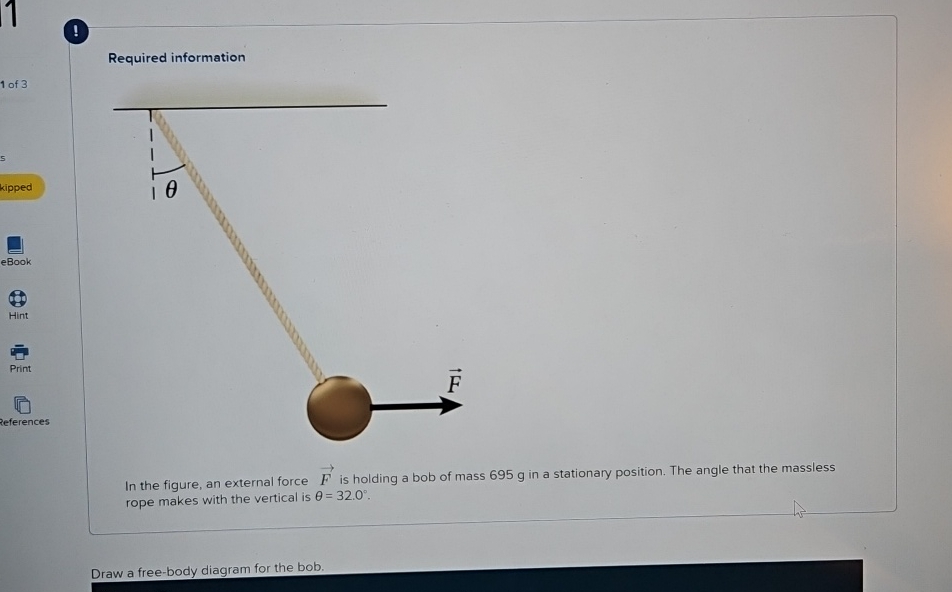

?In the figure, an external force
vec(F)is holding a bob of mass 695 g in a stationary position. The angle that the massless rope makes with the vertical is
\theta =32.0\deg . Draw a free-body diagram for the bob. Please add magnitudes andangles for the forces
