(Solved): 1. The following Boolean equation defines the logical relationship between inputs A and B and outpu ...

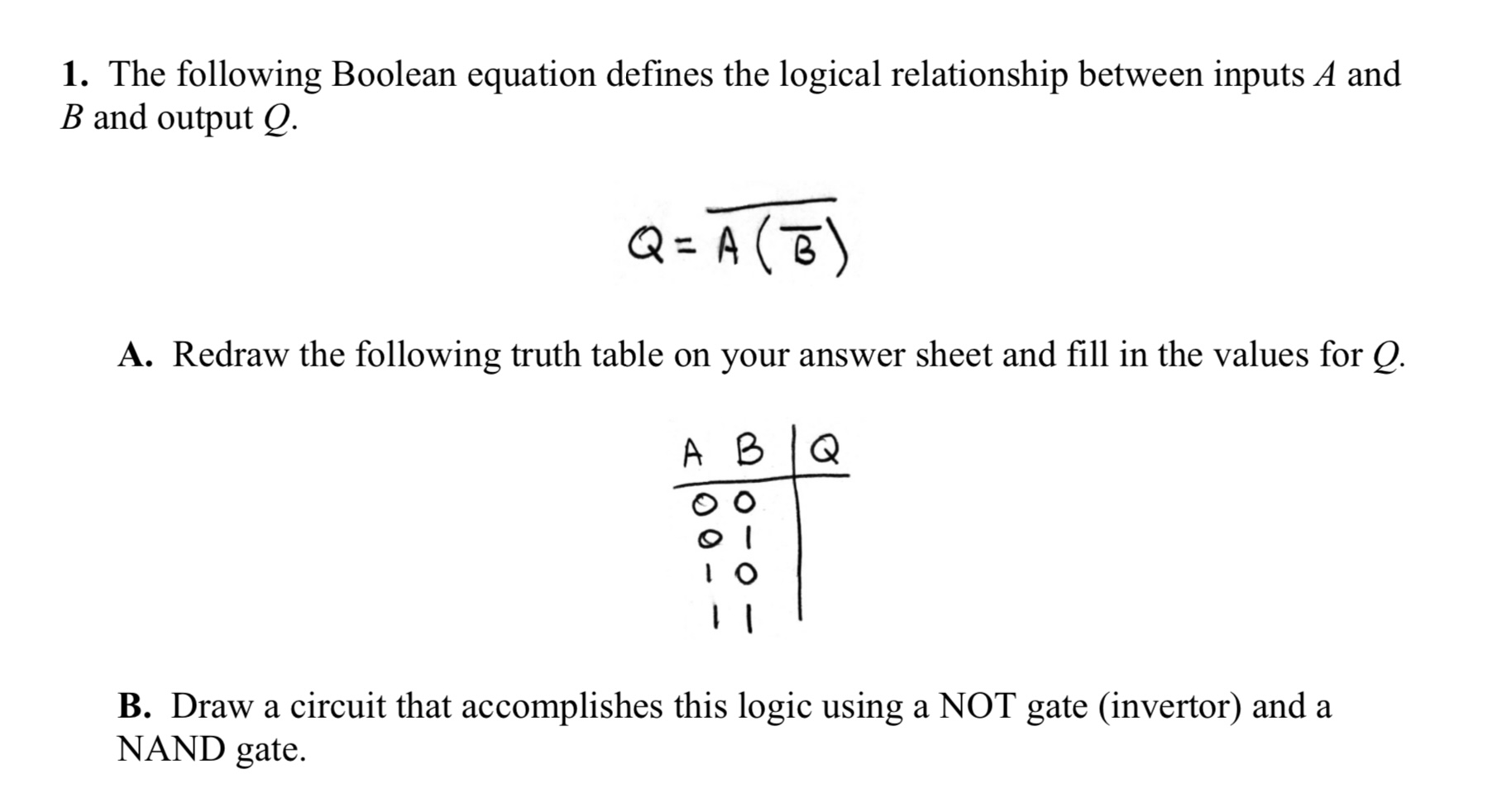

1. The following Boolean equation defines the logical relationship between inputs $A$ and $B$ and output $Q$. $Q=\overline{A(\stackrel{?}{B})}$ A. Redraw the following truth table on your answer sheet and fill in the values for $Q$. B. Draw a circuit that accomplishes this logic using a NOT gate (invertor) and a NAND gate.
