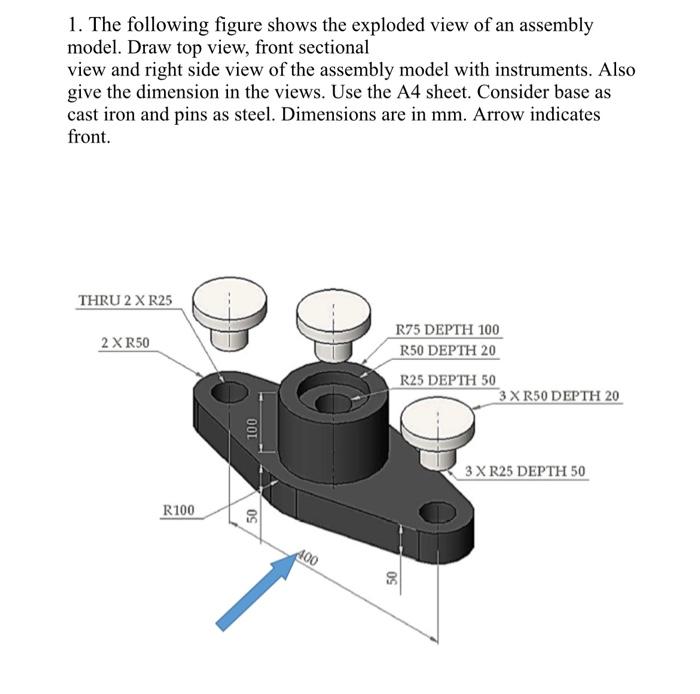

1. The following figure shows the exploded view of an assembly model. Draw top view, front sectional view and right side view of the assembly model with instruments. Also give the dimension in the views. Use the A4 sheet. Consider base as cast iron and pins as steel. Dimensions are in $\mathrm{mm}$. Arrow indicates front.
