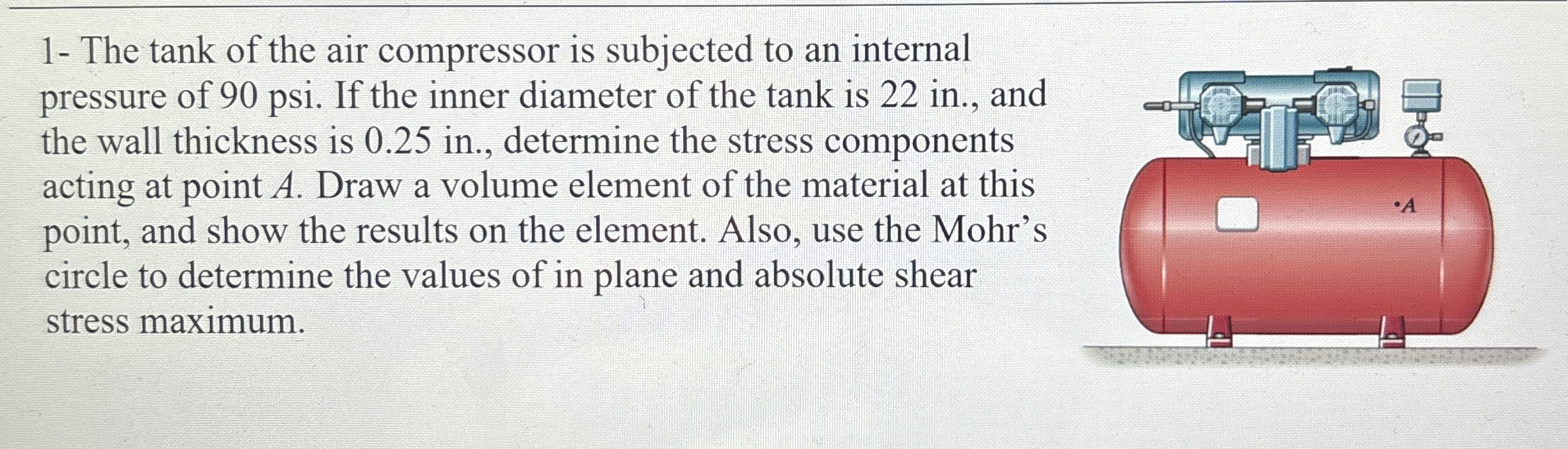

1- The tank of the air compressor is subjected to an internal pressure of 90 psi . If the inner diameter of the tank is 22 in ., and the wall thickness is 0.25 in., determine the stress components acting at point
A. Draw a volume element of the material at this point, and show the results on the element. Also, use the Mohr's circle to determine the values of in plane and absolute shear stress maximum.
