(Solved): 16. please help with a, b, and c The following electrostatic potential diagrams represent H2,HCl, ...

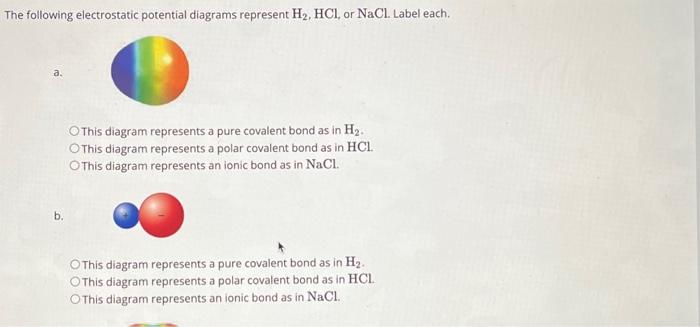

The following electrostatic potential diagrams represent ${\mathrm{H}}_2,\mathrm{HCl}$, or $\mathrm{NaCl}$. Label each. a. This diagram represents a pure covalent bond as in ${\mathrm{H}}_2$. This diagram represents a polar covalent bond as in $\mathrm{HCl}$. This diagram represents an ionic bond as in $\mathrm{NaCl}$. b. This diagram represents a pure covalent bond as in ${\mathrm{H}}_2$. This diagram represents a polar covalent bond as in $\mathrm{HCl}$. This diagram represents an ionic bond as in $\mathrm{NaCl}$. This diagram represents a pure covalent bond as in ${\mathrm{H}}_2$. This diagram represents a polar covalent bond as in $\mathrm{HCl}$. This diagram represents an ionic bond as in $\mathrm{NaCl}$. This diagram represents a pure covalent bond as in ${\mathrm{H}}_2$. This diagram represents a polar covalent bond as in $\mathrm{HCl}$. This diagram represents an ionic bond as in $\mathrm{NaCl}$.
