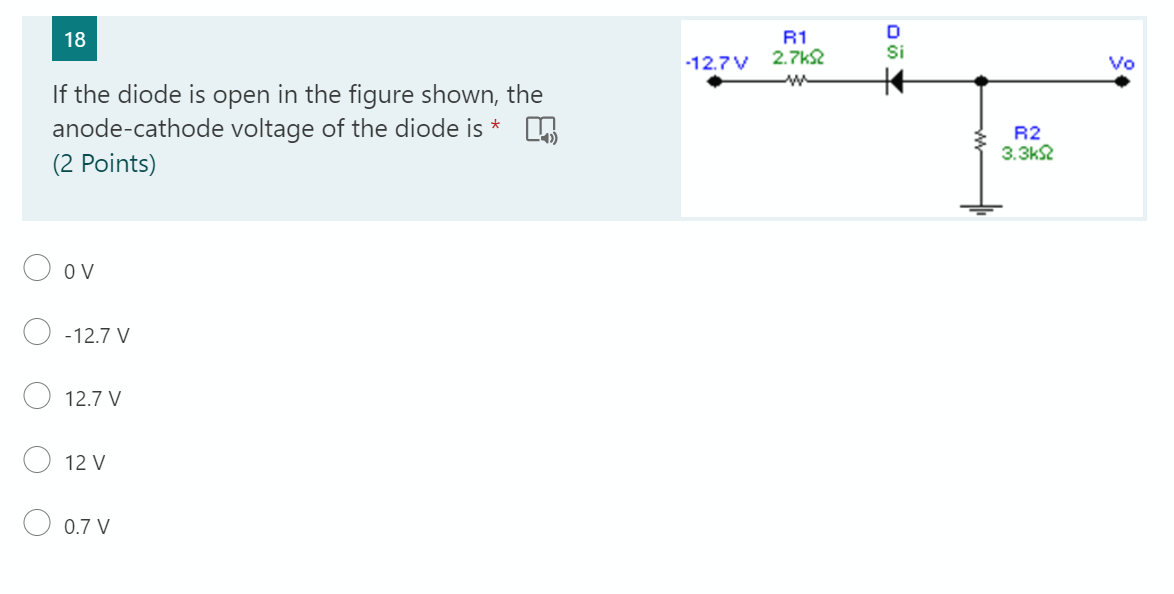

18 If the diode is open in the figure shown, the anode-cathode voltage of the diode is * (2 Points ...
18 If the diode is open in the figure shown, the anode-cathode voltage of the diode is * (2 Points) K OV -12.7 V 12.7 V 2 V 0.7 V -12.7 V R1 2.7k w D 20 Si R2 3.3k Vo
