(Solved): 2.6 In the network graph shown in Fig. 2.70, determine the number of branches and nodes. Figure \( ...
2.6 In the network graph shown in Fig. 2.70, determine the number of branches and nodes. Figure \( 2.70 \) For Prob. \( 2.6 . \) 3.7 Determine the number of branches and nodes in the circuit of Fig. 2.71. Figure \( 2.71 \) For Prob. 2.7.

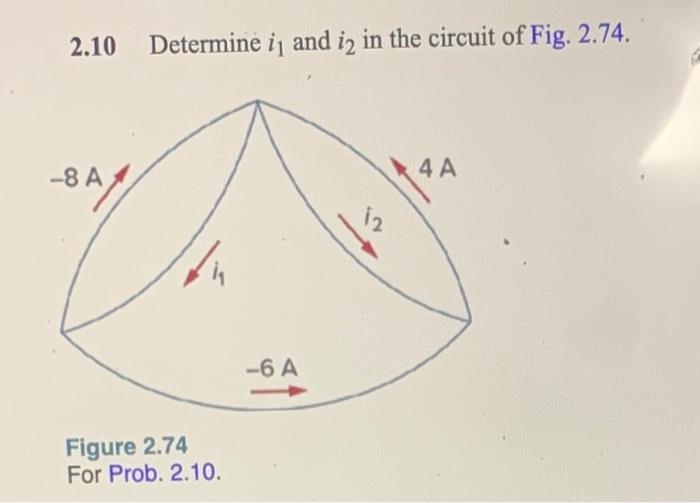

2.10 Determine \( i_{1} \) and \( i_{2} \) in the circuit of Fig. 2.74. Figure \( 2.74 \) For Prob. 2.10.
