(Solved): 2. A 16 meter long steel c-channel is used to transport a wet slurry (liquid). Calculate and draw t ...

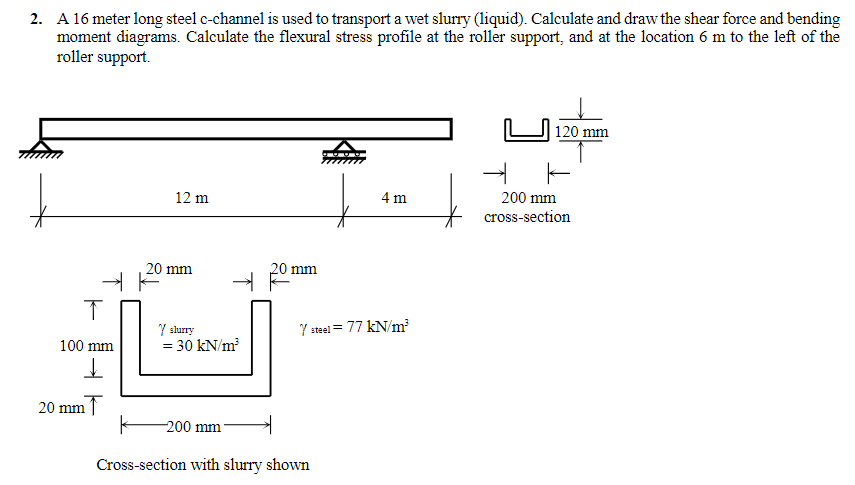

2. A 16 meter long steel c-channel is used to transport a wet slurry (liquid). Calculate and draw the shear force and bending moment diagrams. Calculate the flexural stress profile at the roller support, and at the location $6\mathrm{m}$ to the left of the roller support. Cross-section with slurry shown
