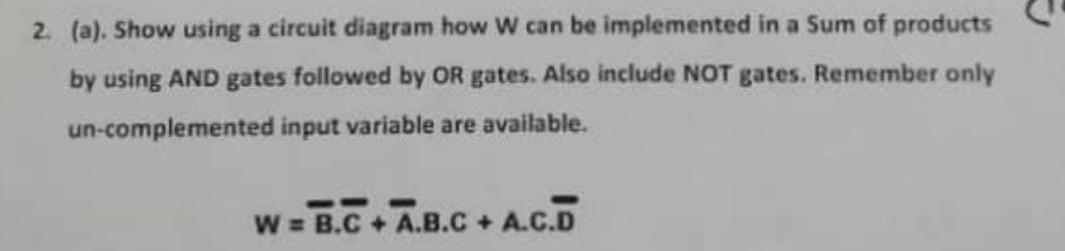

2. (a). Show using a circuit diagram how W can be implemented in a Sum of products by using AND gates followed by OR gates. Also include NOT gates. Remember only un-complemented input variable are available. W=B?C+A?B?C+A?C?D? solutionspile.com
