(Solved): 2. The Easter Bunny is automating the egg coloring process using an assembly line for applying base ...

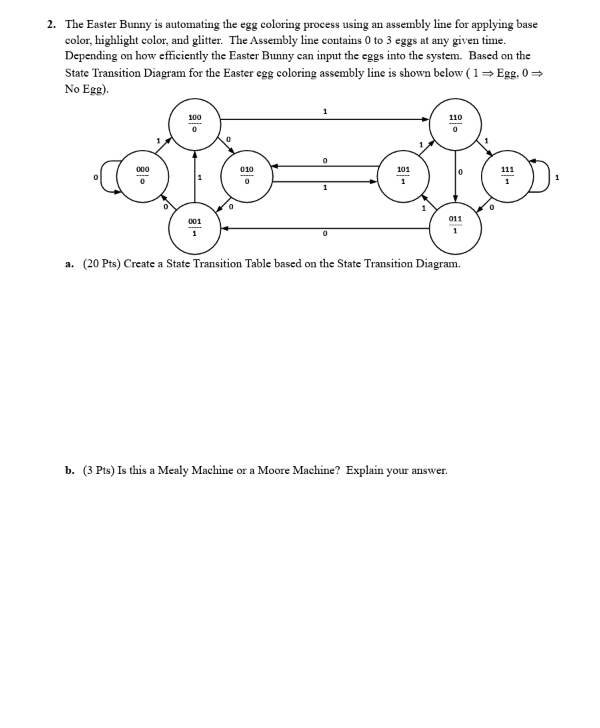

2. The Easter Bunny is automating the egg coloring process using an assembly line for applying base color, highlight color, and glitter. The Assembly line contains 0 to 3 eggs at any given time. Depending on how efficiently the Easter Bunny can input the eggs into the system. Based on the State Transition Diagram for the Easter egg coloring assembly line is shown below ( \( 1 \Rightarrow \mathrm{Egg}, 0 \Rightarrow \) No Fog). a. ( \( \angle \mathrm{U} \) rTs) Create a stare 1 ransition 1 ade dased on the state 1 ransition Diagram. b. (3 Pts) Is this a Mealy Machine or a Moore Machine? Explain your answer.
