(Solved): 2. The following circuit represents a logical relationship between inputs A,B, and C, and output Q. ...

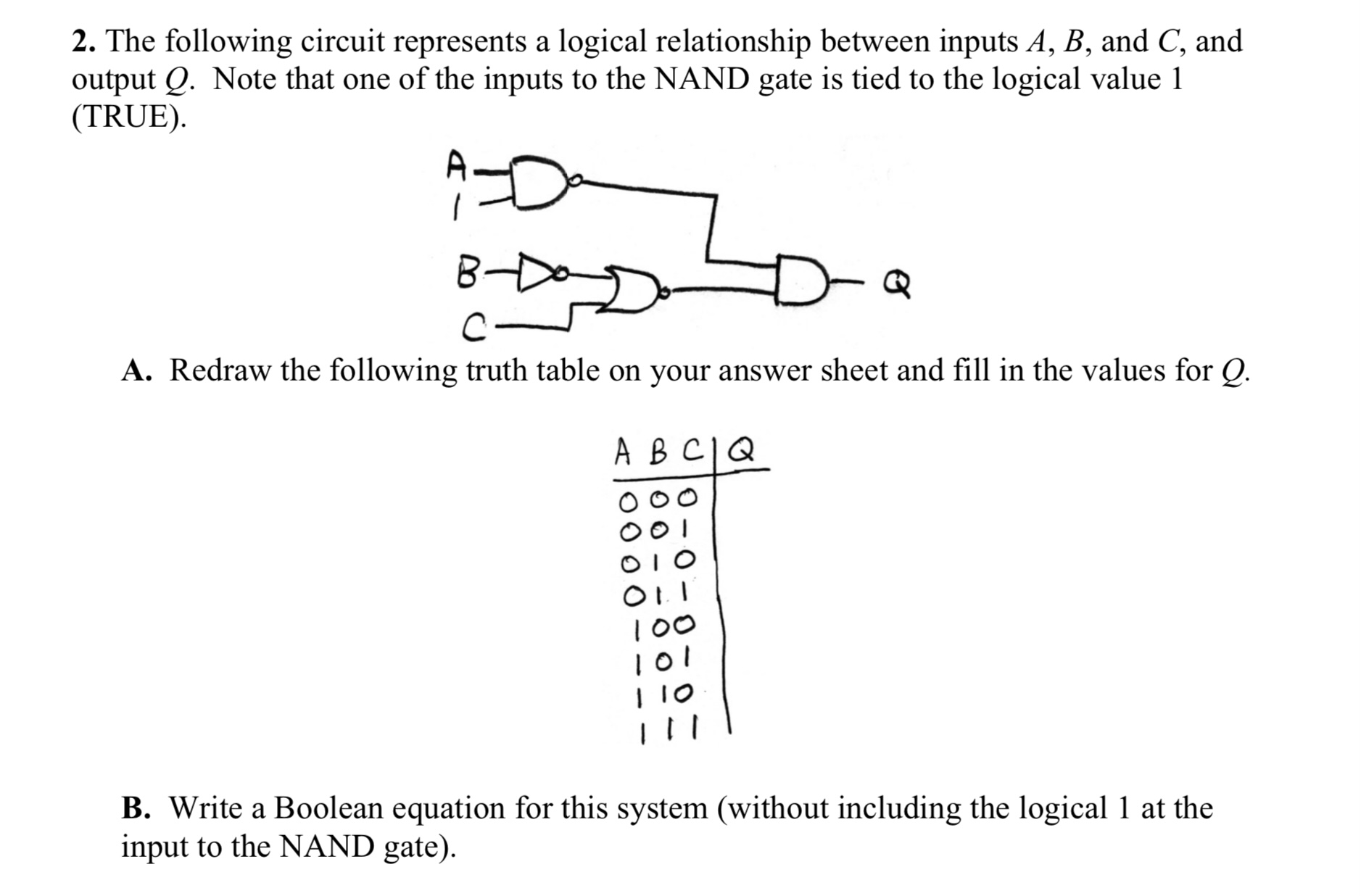

2. The following circuit represents a logical relationship between inputs $A,B$, and $C$, and output $Q$. Note that one of the inputs to the NAND gate is tied to the logical value 1 (TRUE). A. Redraw the following truth table on your answer sheet and fill in the values for $Q$. B. Write a Boolean equation for this system (without including the logical 1 at the input to the NAND gate).
