(Solved): (20 points) Parallel Transmission Line: Three lossless transmission lines are connected in parallel ...
(20 points) Parallel Transmission Line: Three lossless transmission lines are connected in parallel as shown in the figure below. Assuming sinusoidal steady-state excitation with a source to the left of the main line, find the reflection coefficient on the main line and the percentage of the total net forward power that is absorbed by the two loads
Z_(L2)and
Z_(L3), when
Z_(L2)=Z_(L3)=50+j50\Omega and

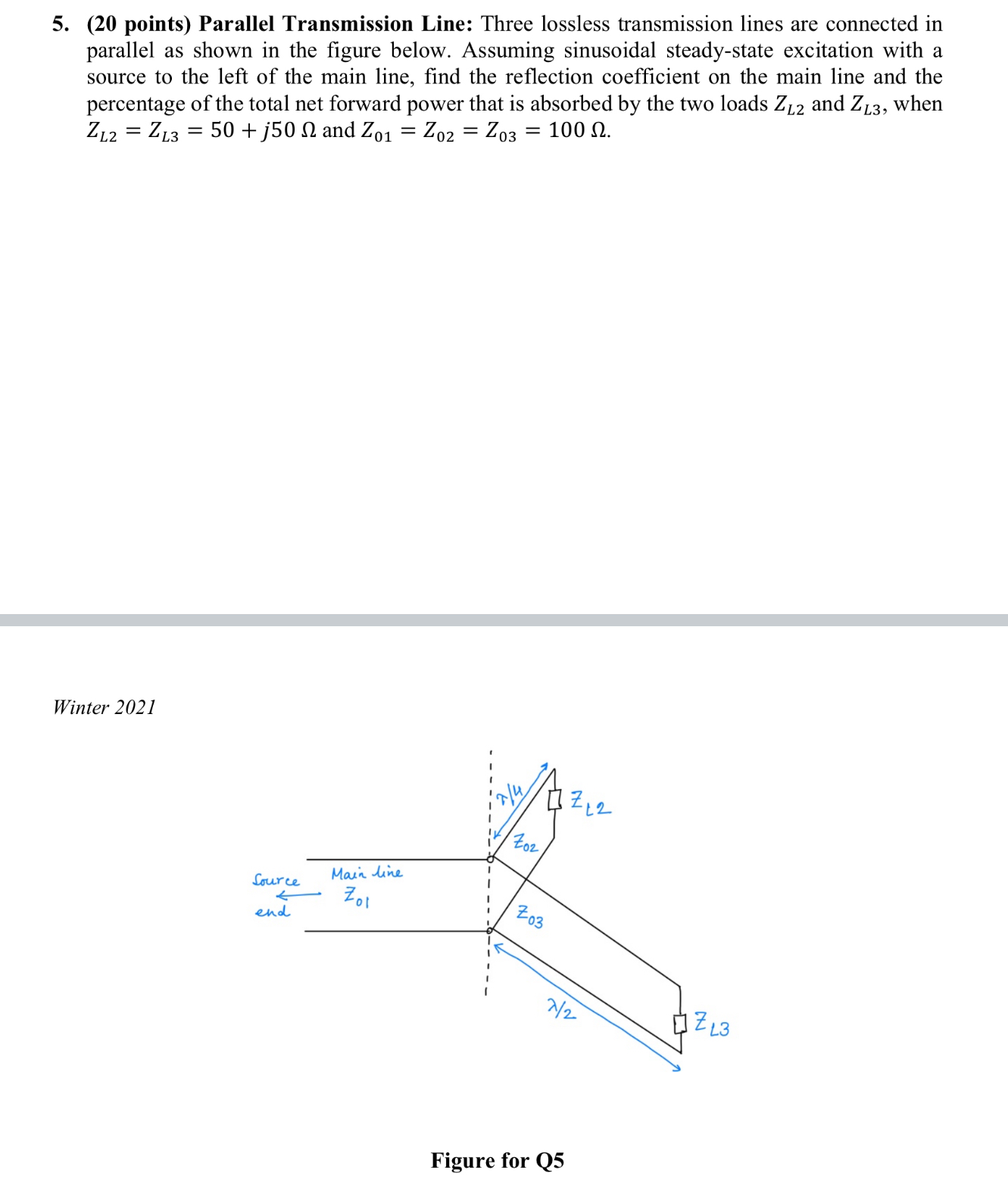

Z_(01)=Z_(02)=Z_(03)=100\Omega . Winter 2021 Figure for Q5
