(Solved): 2024 Electric Drive System Course Design Topic: Design a V/F controlled inductor motor drive system, ...

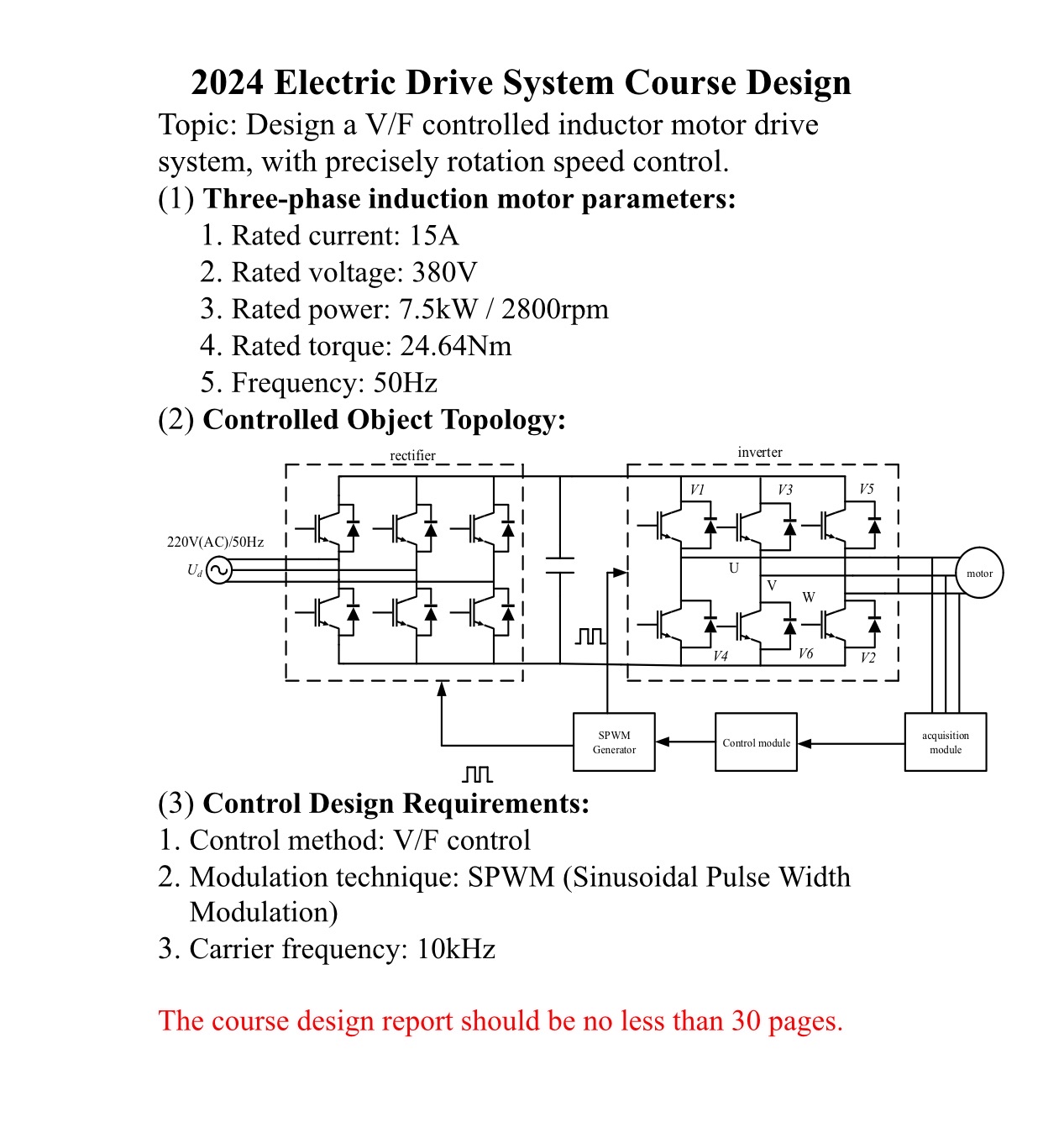

2024 Electric Drive System Course Design Topic: Design a V/F controlled inductor motor drive system, with precisely rotation speed control. (1) Three-phase induction motor parameters: Rated current: 15 A Rated voltage: 380 V Rated power:

Rated torque: 24.64 Nm Frequency: 50 Hz (2) Controlled Object Topology: (3) Control Design Requirements: Control method: V/F control Modulation technique: SPWM (Sinusoidal Pulse Width Modulation) Carrier frequency: 10 kHz The course design report should be no less than 30 pages.
