(Solved): 3-Draw the shear force and bending moment graphs and determine the shear force V and bending moment ...

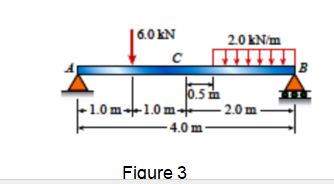

3-Draw the shear force and bending moment graphs and determine the shear force V and bending moment M at the midpoint C of the simple beam AB shown in Figure 3.

student submitted image, transcription available below
Fiaure 3
