(Solved): 4. (15 pts) The diagram below plots the current vs potential difference for both resistor R1 and R ...

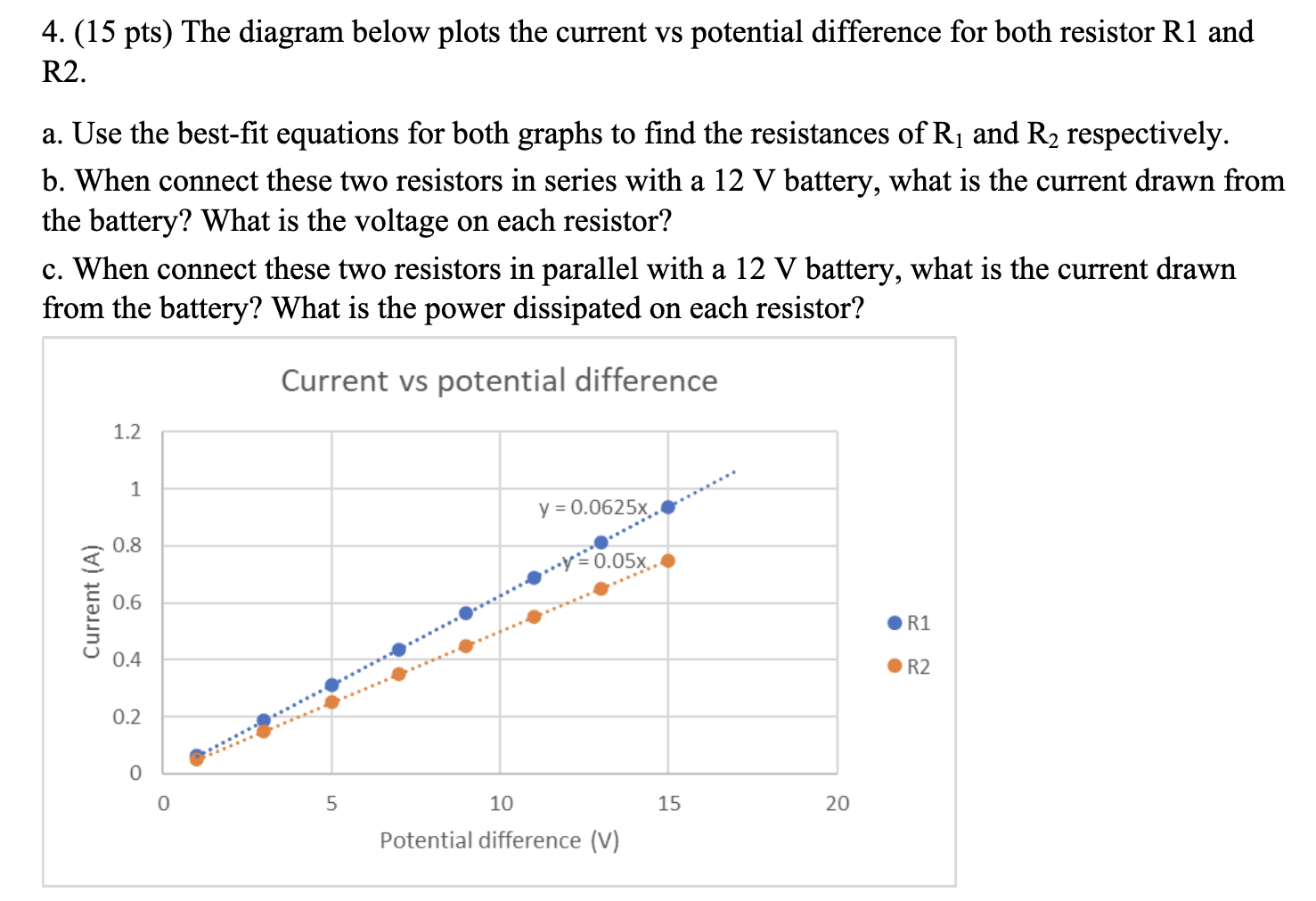

4. (15 pts) The diagram below plots the current vs potential difference for both resistor R1 and R2. a. Use the best-fit equations for both graphs to find the resistances of R? and R? respectively. b. When connect these two resistors in series with a 12 V battery, what is the current drawn from the battery? What is the voltage on each resistor? c. When connect these two resistors in parallel with a 12 V battery, what is the current drawn from the battery? What is the power dissipated on each resistor? Current vs potential difference 1.2 1 y = 0.0625x 0.8 0.05x. 0.6 R1 0.4 R2 0.2 0 5 Current (A) 0 10 Potential difference (V) 15 20
