(Solved): ( 40% ) Water at 20\deg C flows from a basement using the 2-cm diameter brass tubing pipe system sho ...
(

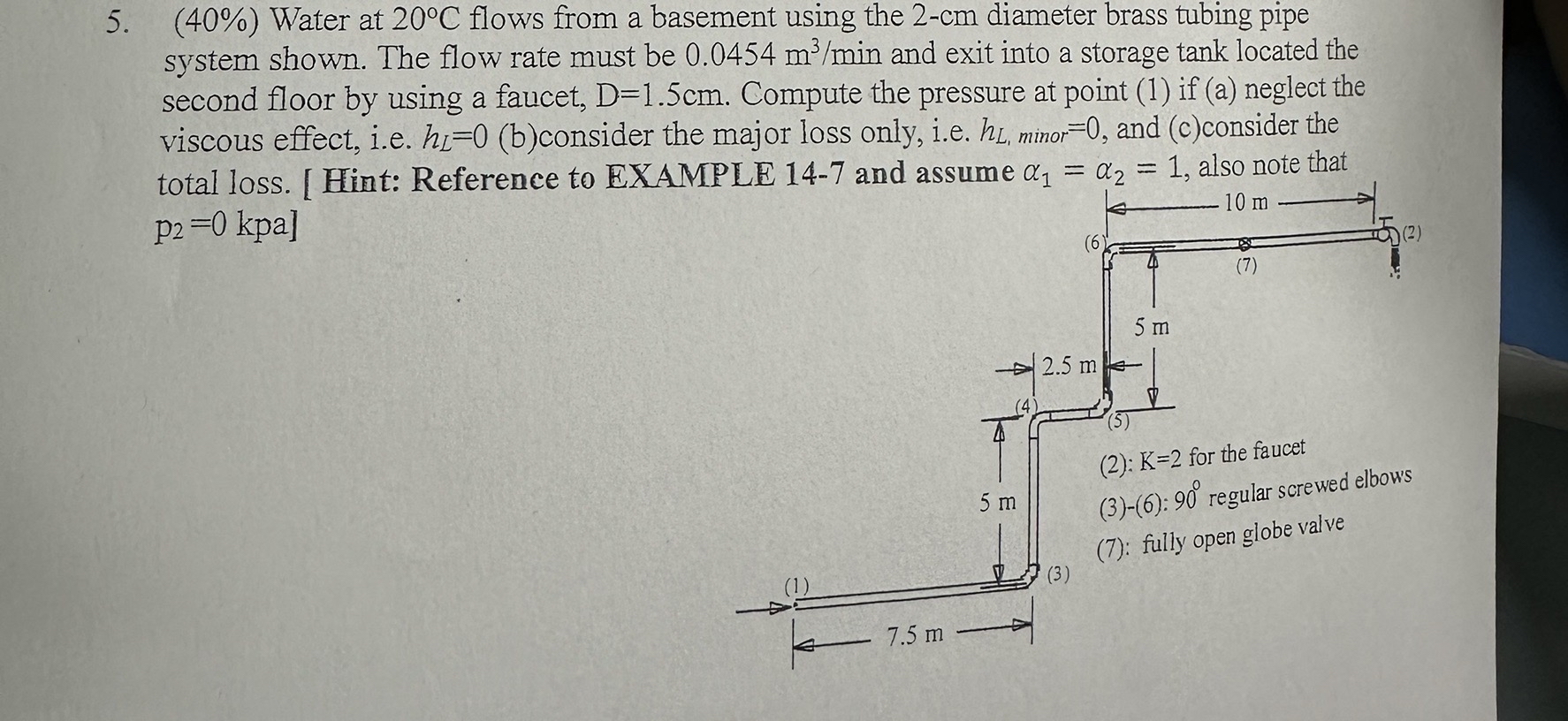

40%) Water at
20\deg Cflows from a basement using the
2-cmdiameter brass tubing pipe system shown. The flow rate must be
0.0454(m^(3))/(m)inand exit into a storage tank located the second floor by using a faucet,
D=1.5cm. Compute the pressure at point (1) if (a) neglect the viscous effect, i.e.
h_(L)=0(b)consider the major loss only, i.e.
h_(L)minor
=0, and (c)consider the total loss. [ Hint: Reference to EXAMPLE 14-7 and assume
\alpha _(1)=\alpha _(2)=1, also note that [
:p_(2)=0kpa
