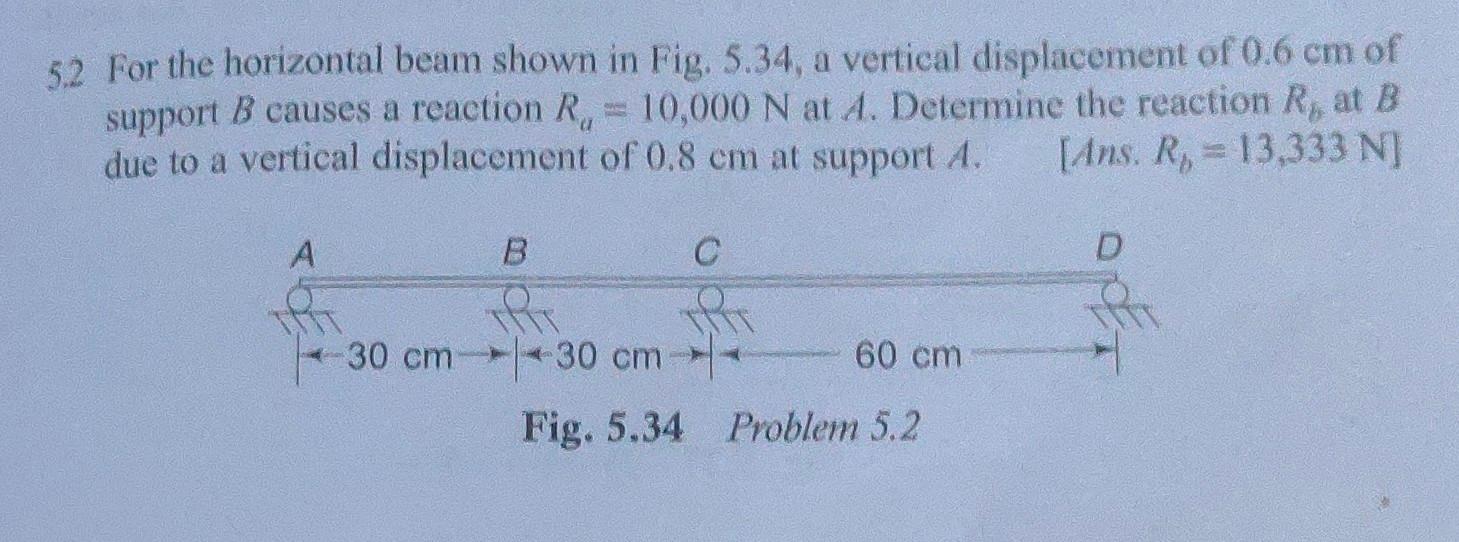

5.2 For the horizontal beam shown in Fig. 5.34, a vertical displacement of $0.6 cm$ of support $B$ causes a reaction $R_{a} = 10, 000 N$ at $A$ . Determine the reaction $R_{b}$ at $B$ due to a vertical displacement of $0.8 cm$ at support $A$ . [Ans. $R_{b} = 13, 333 N$ ] Fig. 5.34 Problem 5.2

Question

student submitted image, transcription available below

5.2 For the horizontal beam shown in Fig. 5.34, a vertical displacement of

0.6 cm

of support

B

causes a reaction

R_{a} = 10, 000 N

at

A

. Determine the reaction

R_{b}

at

B

due to a vertical displacement of

0.8 cm

at support

A

. [Ans.

R_{b} = 13, 333 N

] Fig. 5.34 Problem 5.2
