(Solved): (7-12)Given a SEPIC Converter Circuit with the following parameters: Input voltage =15V Output volta ...

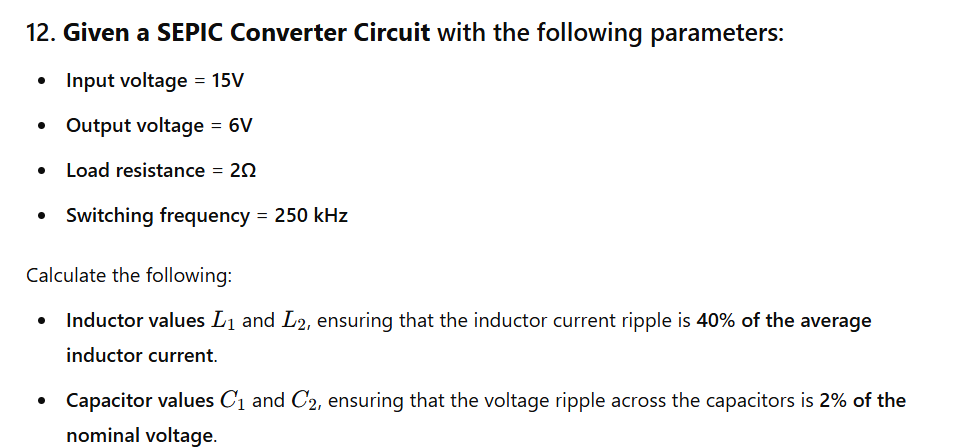

(7-12)Given a SEPIC Converter Circuit with the following parameters:
Input voltage =15V
Output voltage =6V
Load resistance =2\Omega
Switching frequency =250kHz
Calculate the following:
Inductor values L_(1) and L_(2), ensuring that the inductor current ripple is 40% of the average
inductor current.
Capacitor values C_(1) and C_(2), ensuring that the voltage ripple across the capacitors is 2% of the nominal voltage.
