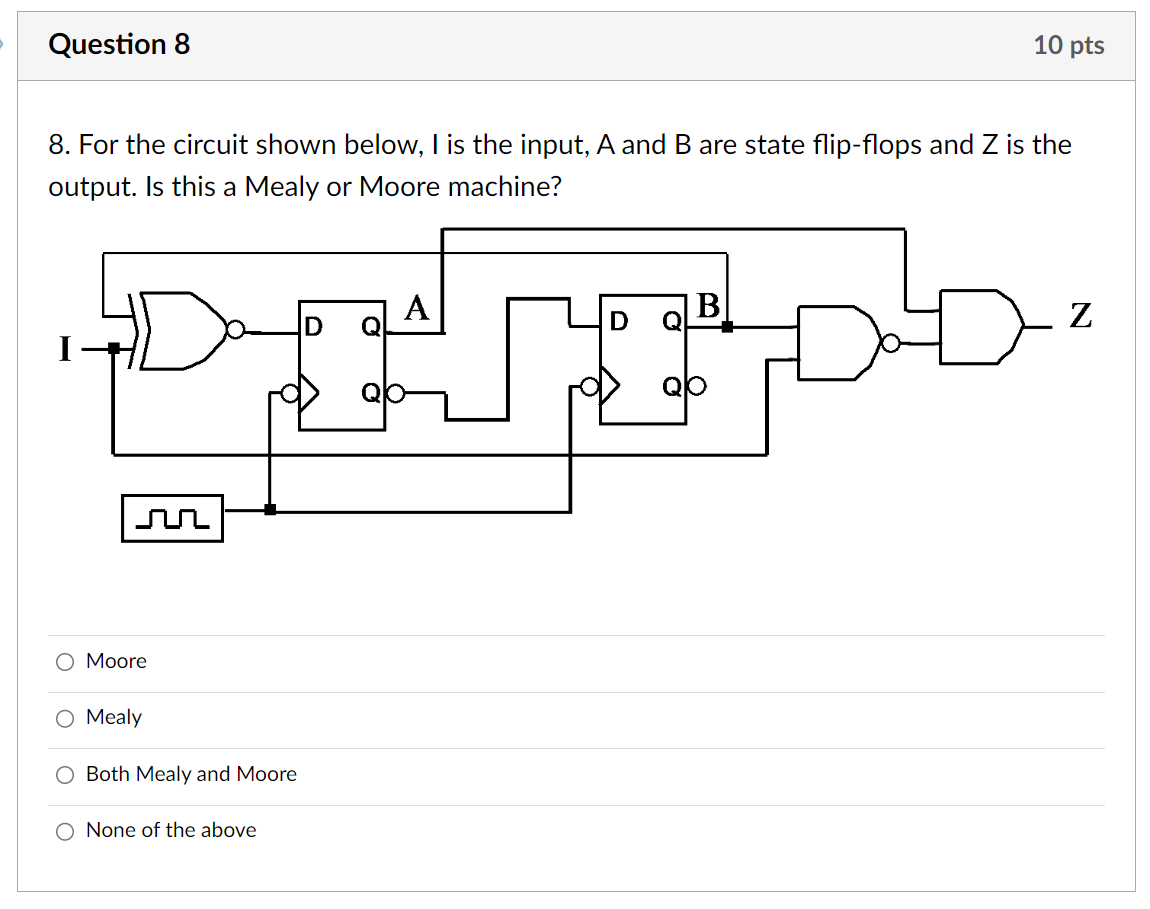

8. For the circuit shown below, I is the input, A and B are state flip-flops and Z is the output. Is this a Mealy or Moore machine? Moore Mealy Both Mealy and Moore None of the above solutionspile.com
