(Solved): A 3.6-k\Omega and a 2.2-k\Omega resistor are connected in parallel; this combination is connected ...

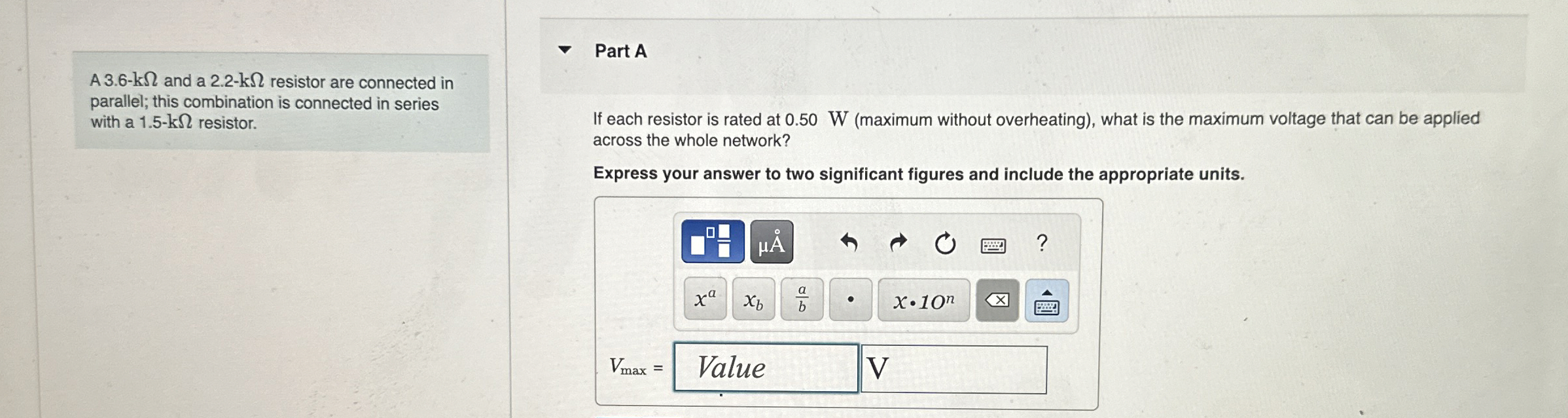

A

3.6-k\Omega

and a

2.2-k\Omega

resistor are connected in parallel; this combination is connected in series with a

1.5-k\Omega

resistor. Part A If each resistor is rated at 0.50 W (maximum without overheating), what is the maximum voltage that can be applied across the whole network? Express your answer to two significant figures and include the appropriate units.

?

x_(b)

(a)/(b)

?

?

V_(max)=

?

V
