(Solved): A BJT common emitter amplifier circuit is fed with 20mV sinusoidal signal source having a source res ...

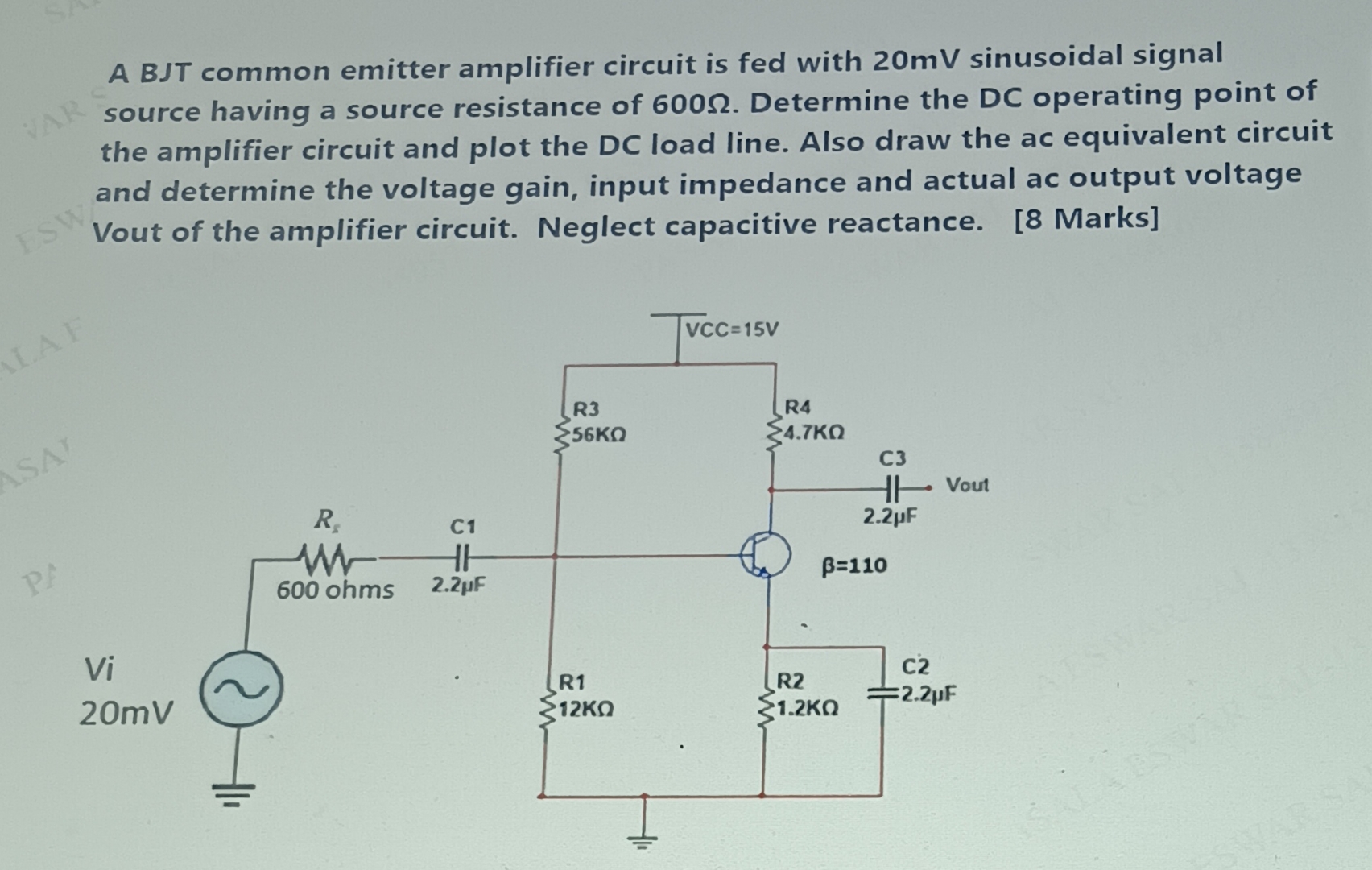

A BJT common emitter amplifier circuit is fed with
20mVsinusoidal signal source having a source resistance of
600\Omega . Determine the DC operating point of the amplifier circuit and plot the DC load line. Also draw the ac equivalent circuit and determine the voltage gain, input impedance and actual ac output voltage Vout of the amplifier circuit. Neglect capacitive reactance. [8 Marks]
