(Solved): A) Calculate the differential output voltage, vod=VC1VC2, for the circuit shown in Fig ...

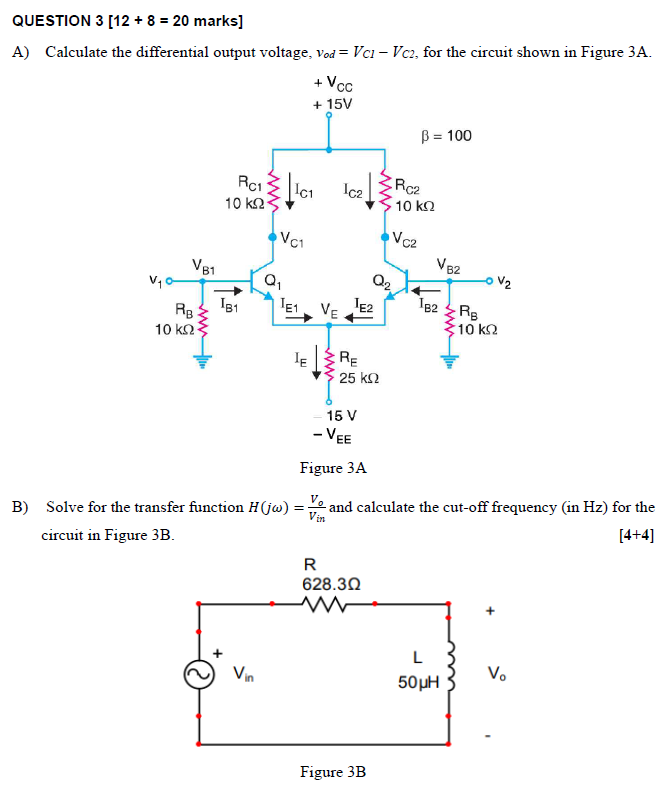

A) Calculate the differential output voltage, , for the circuit shown in Figure . rigure B) Solve for the transfer function and calculate the cut-off frequency (in ) for the circuit in Figure 3B. Figure 3B
Expert Answer
(A).?= 100As V1 and V2 values are not given then they can assumed as zero.So, V1 = V2 = 0Also assume Q1 =
