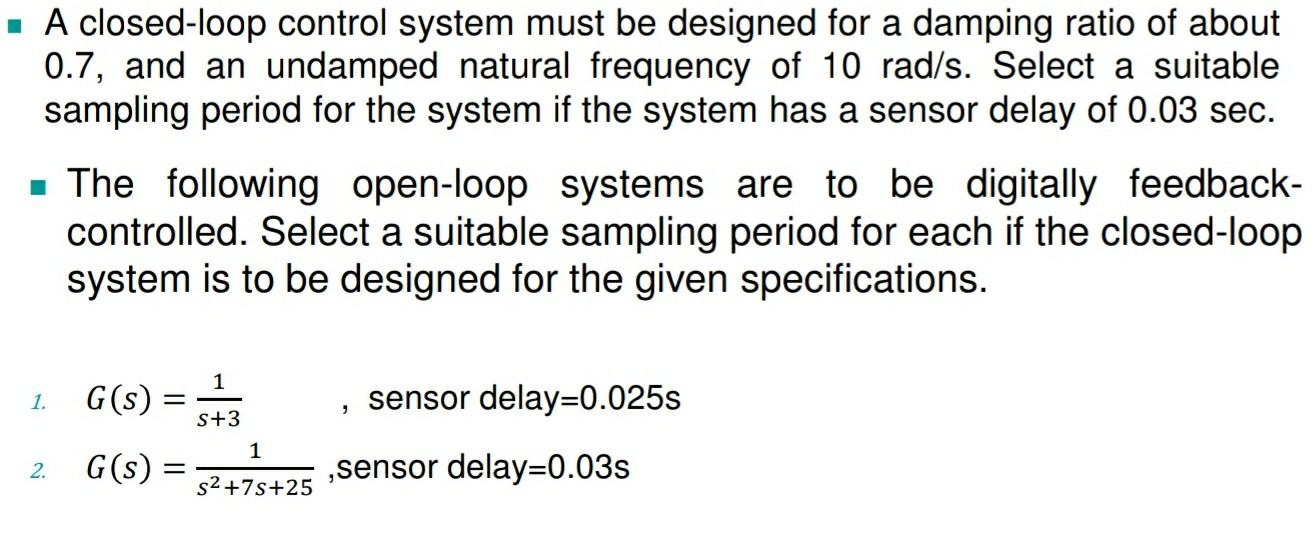

? A closed-loop control system must be designed for a damping ratio of about
0.7, and an undamped natural frequency of 10 rad/s. Select a suitable
sampling period for the system if the system has a sensor delay of 0.03 sec.
? The following open-loop systems are to be digitally feedback-
controlled. Select a suitable sampling period for each if the closed-loop
system is to be designed for the given specifications.
1.
2.
1
G(s) = 5+3
sensor delay=0.025s
1
G(S) = $2+75+25 Sensor delay=0.03s
"
I want a detailed hand written solution
A closed-loop control system must be designed for a damping ratio of about 0.7 , and an undamped natural frequency of . Select a suitable sampling period for the system if the system has a sensor delay of . - The following open-loop systems are to be digitally feedbackcontrolled. Select a suitable sampling period for each if the closed-loop system is to be designed for the given specifications.
Expert Answer
To select a suitable sampling period for the closed-loop control system, we need to consider the damping ratio and undamped natural frequency. The sampling period should be small enough to accurately capture the dynamics of the system. For a closed-...
