A DC-DC Chopper Circuit with an RL Load has an output current waveform shown below with a duty cycle of ( 50 % ) and ( 1 mathrm{~ms} ) period. If it has a resistance of ( 1 mathrm{ohm} ) and an inductance of ( 10 mathrm{mH} ), find the source voltage. solutionspile.com

Question

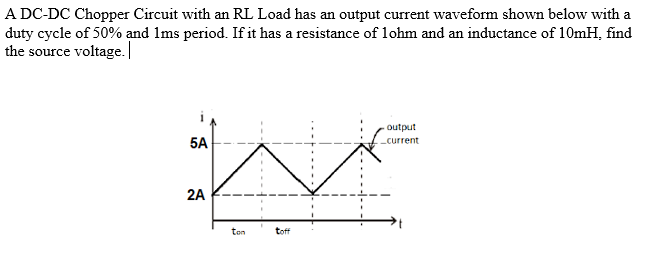

A DC-DC Chopper Circuit with an RL Load has an output current waveform shown below with a duty cycle of  ( 50  %  ) and  ( 1  mathrm{~ms}  ) period. If it has a resistance of  ( 1  mathrm{ohm}  ) and an inductance of  ( 10  mathrm{mH}  ), find the source voltage. solutionspile.com
