(Solved): (a) Define current. (b) Define voltage. (c) Figure 2 shows a circuit consisti ...

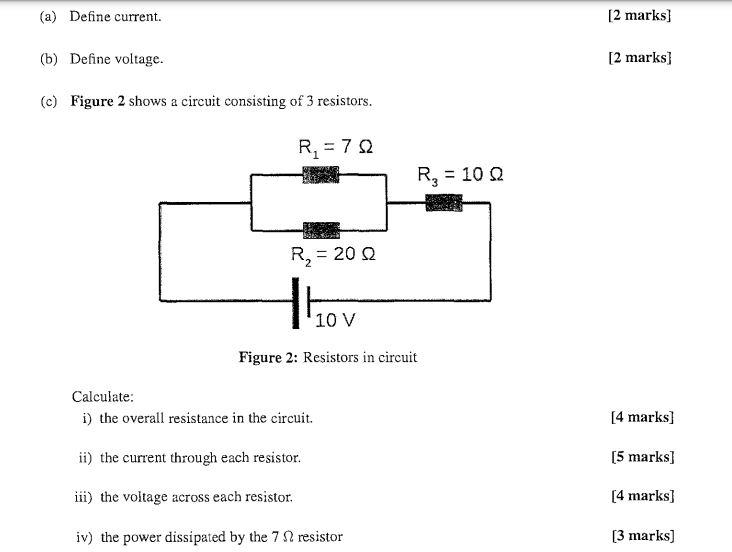

(a) Define current. (b) Define voltage. (c) Figure 2 shows a circuit consisting of 3 resistors. Figure 2: Resistors in circuit Calculate: i) the overall resistance in the circuit. ii) the current through each resistor. iii) the voltage across each resistor. iv) the power dissipated by the \( 7 \Omega \) resistor
Expert Answer
a). current is the rate of flow of charge in a circuit I=dQdt b). voltage is the difference in electric potential between two points c). As R1 and R2
