(Solved): A flow nozzle equipped with a differential pressure gage is used to measure the flow rate of water t ...

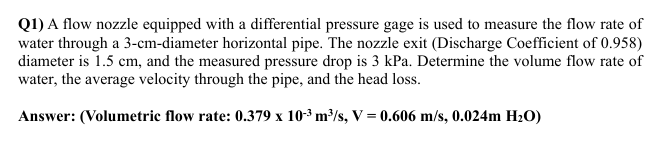

A flow nozzle equipped with a differential pressure gage is used to measure the flow rate of water through a 3-cm-diameter horizontal pipe. The nozzle exit (Discharge Coefficient of 0.958) diameter is 1.5 cm, and the measured pressure drop is 3 kPa. Determine the volume flow rate of water, the average velocity through the pipe, and the head loss.


We have an Answer from Expert

View Expert Answer

Expert Answer
