(Solved): A jet is issued from the side of a tank under a constant head as shown. The side of the tank has an ...



A jet is issued from the side of a tank under a constant head as shown. The side of the tank has an inclination of1H to 1 V . The total depth of water in the tank is

h1=6.70m

and the orifice is located h2

=3.7m

above the bottom of the tank. Neglecting air resistance and assuming

Cv=0.98

determine the following: a. The maximum height to which the jet will rise above the orifice. b. The point "

x

" the jet will strike a horizontal plane1.20 m below the bottom of the tank. c. The time it takes for the jet to strike a horizontal plane 1.20

m

below the bottom of the tank.

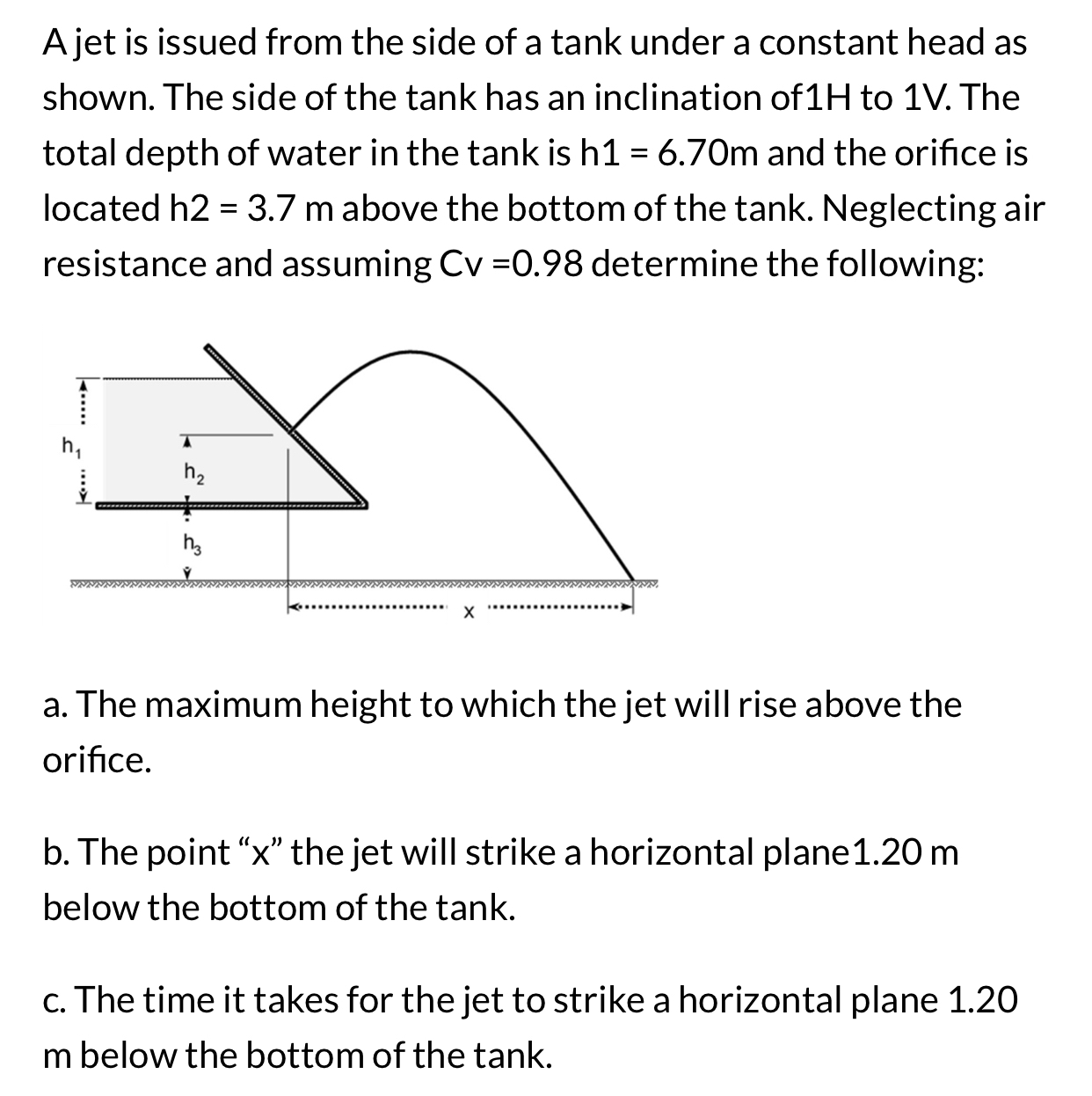

student submitted image, transcription available below
