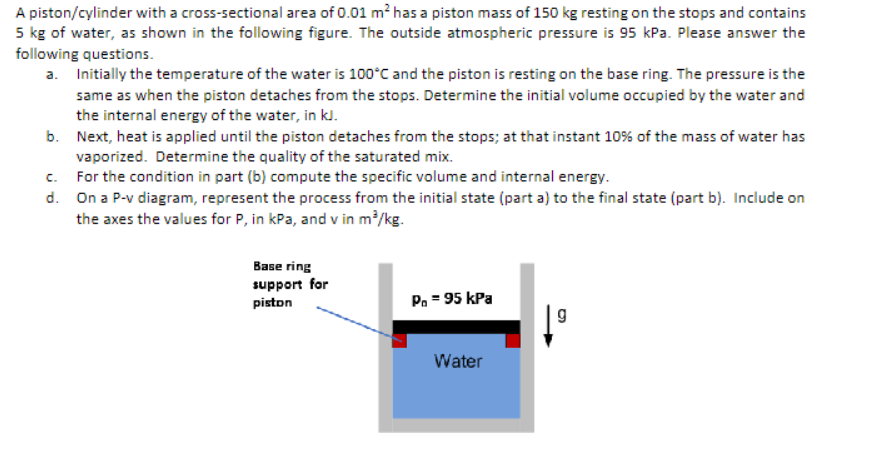

A piston/cylinder with a cross-sectional area of $0.01{\mathrm{m}}^2$ has a piston mass of $150\mathrm{kg}$ resting on the stops and contains $5\mathrm{kg}$ of water, as shown in the following figure. The outside atmospheric pressure is $95\mathrm{kPa}$. Please answer the following questions. a. Initially the temperature of the water is $100^{?}\mathrm{C}$ and the piston is resting on the base ring. The pressure is the same as when the piston detaches from the stops. Determine the initial volume occupied by the water and the internal energy of the water, in kJ. b. Next, heat is applied until the piston detaches from the stops; at that instant $10\%$ of the mass of water has vaporized. Determine the quality of the saturated mix. c. For the condition in part (b) compute the specific volume and internal energy. d. On a P-v diagram, represent the process from the initial state (part a) to the final state (part b). Include on the axes the values for $P$, in $\mathrm{kPa}$, and $v$ in ${\mathrm{m}}^3/\mathrm{kg}$.
