(Solved): a) Read the manuals related to multimeter, power supply, function generator, MSO b) Find the avera ...

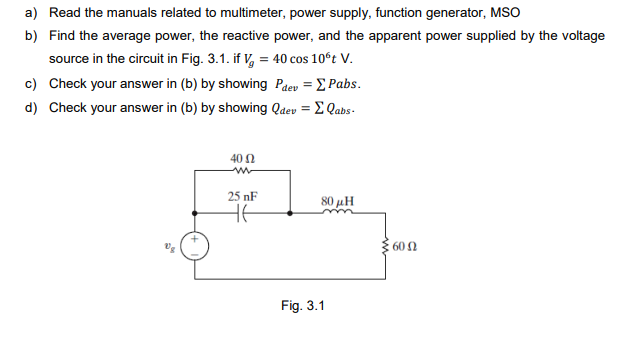

a) Read the manuals related to multimeter, power supply, function generator, MSO b) Find the average power, the reactive power, and the apparent power supplied by the voltage source in the circuit in Fig. 3.1. if $V_g=40\cos 10^{6}t\mathrm{V}$. c) Check your answer in (b) by showing $P_{dev}=?Pabs$. d) Check your answer in (b) by showing $Q_{dev}=?Q_{abs}$. Fig. 3.1
