(Solved): A structure is attached to the ocean floor as shown in Fig.P2.58. A2m diameter hatch is located in a ...

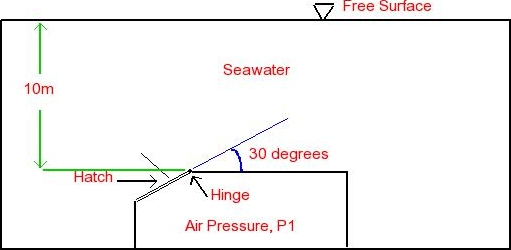

A structure is attached to the ocean floor as shown in Fig.P2.58. A2m diameter hatch is located in an inclined wall and hinged on onehedge. Determine the minimum air pressure, P1, withingthe container that will open the hatch . Neglect the weight of thehatch and friction in the hinge.

student submitted image, transcription available below

Ignore the line that is almost perpendicular to thehatch!
