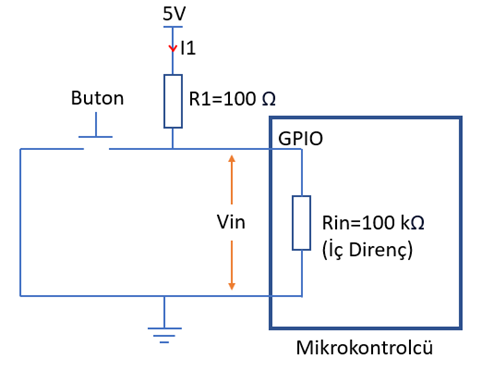

According to the microcontroller circuit shown in the figure;
a-) Calculate the Vin value (in volts) before pressing the button?
b-) Calculate the Vin value (in volts) after pressing the button?
c-) Calculate the current I1 (in uA - microAmps) before pressing the button?
d-) Calculate the current I1 (in mA - milliAmps) after the button is pressed? (
e-) Calculate the power (in mW – milliWatts) on the resistor Rin before pressing the button
Expert Answer
a) To calculate the Vin value (in volts) before pressing the button, we need to consider the voltage...
