(Solved): An engine is coupled via a single-plate clutch to a shaft. The plate has contact surfaces at both si ...

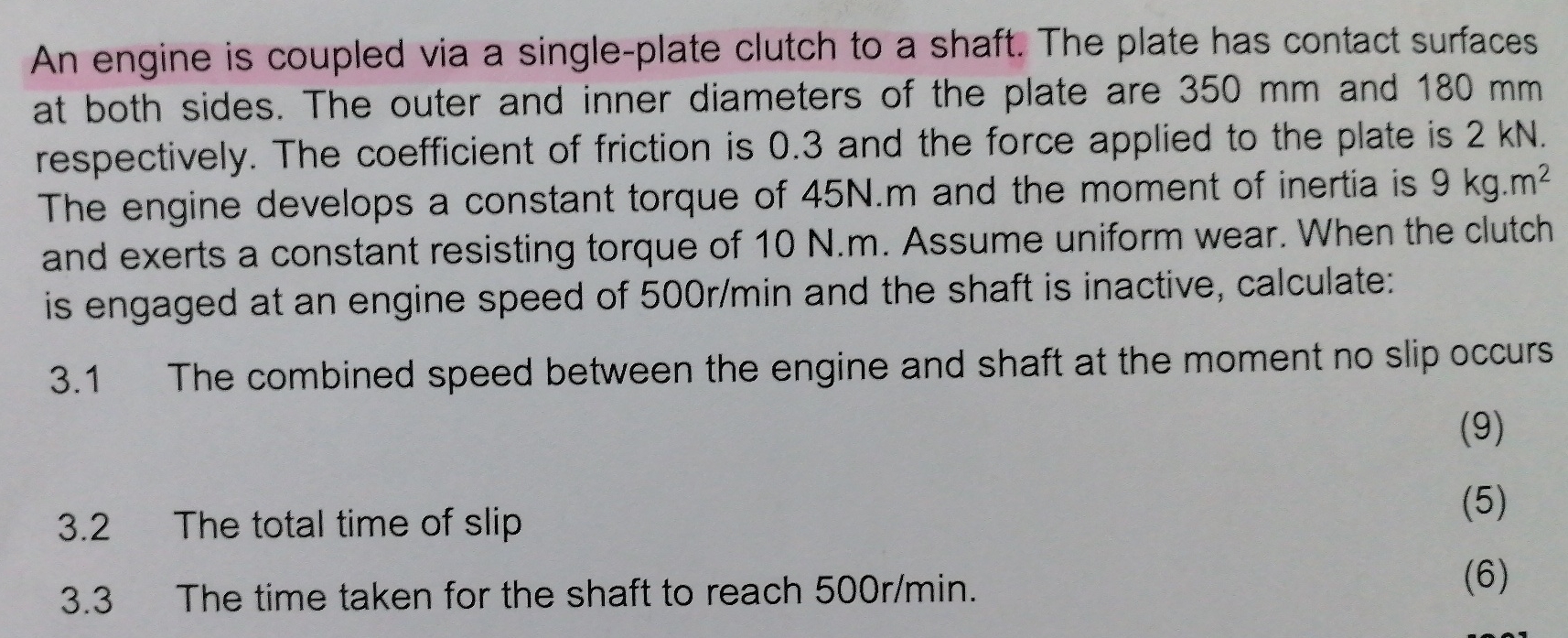

An engine is coupled via a single-plate clutch to a shaft. The plate has contact surfaces at both sides. The outer and inner diameters of the plate are 350 mm and 180 mm respectively. The coefficient of friction is 0.3 and the force applied to the plate is 2 kN . The engine develops a constant torque of

45N.m

and the moment of inertia is

9kg.m^(2)

and exerts a constant resisting torque of 10 N.m. Assume uniform wear. When the clutch is engaged at an engine speed of

500(r)/(m)in

and the shaft is inactive, calculate: 3.1 The combined speed between the engine and shaft at the moment no slip occurs (9) 3.2 The total time of slip (5) 3.3 The time taken for the shaft to reach

500(r)/(m)in

. (6)
