An RLC circuit is driven by an AC generator. The voltage of the generator is
V_(RMS)=85.4V

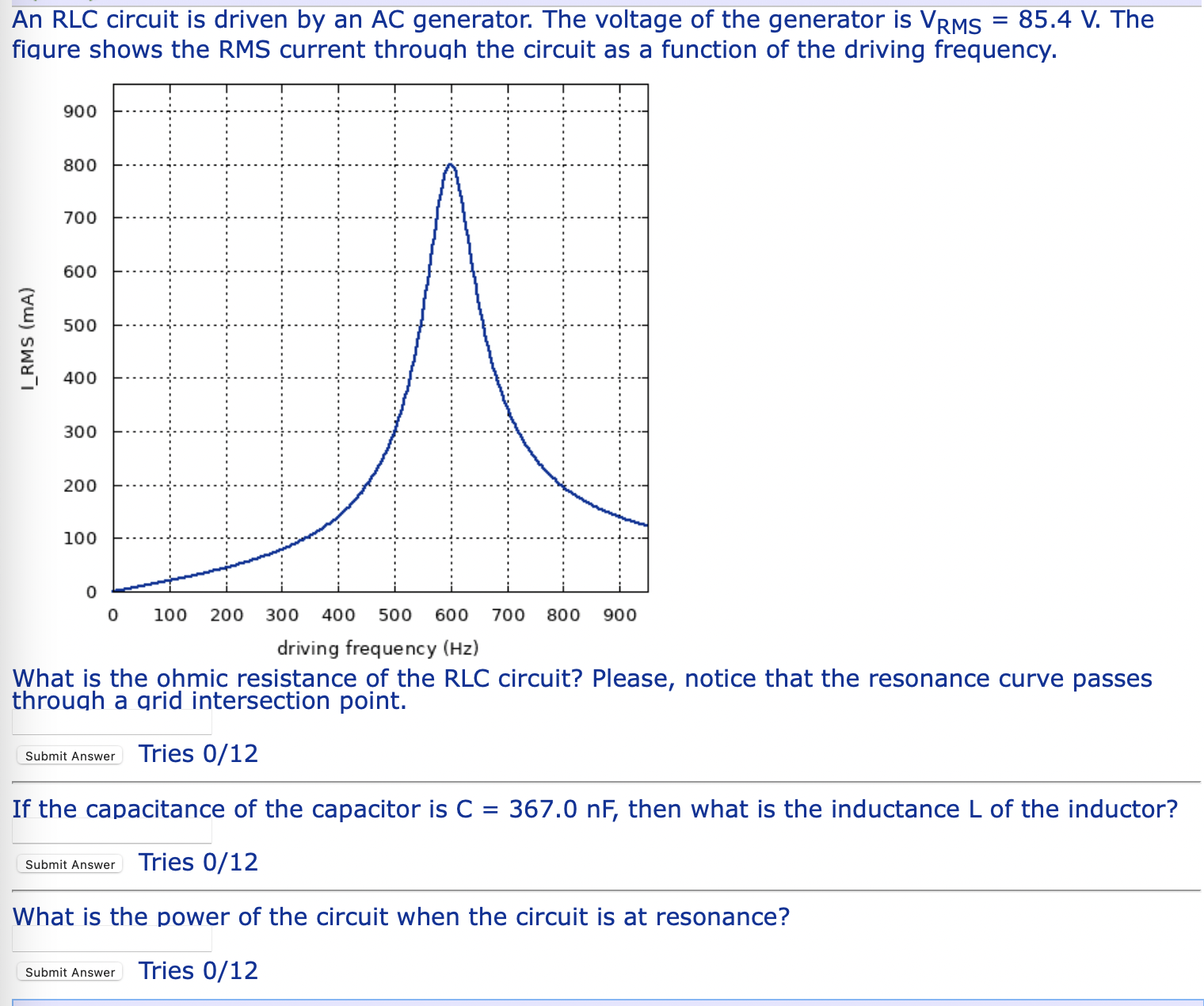

. The fiqure shows the RMS current throuqh the circuit as a function of the driving frequency. What is the ohmic resistance of the RLC circuit? Please, notice that the resonance curve passes throuah a arid intersection point. Tries
(0)/(12)
If the capacitance of the capacitor is
C=367.0nF
, then what is the inductance
L
of the inductor? Tries
(0)/(12)
What is the power of the circuit when the circuit is at resonance? Tries 0/12

Question

An RLC circuit is driven by an AC generator. The voltage of the generator is

V_(RMS)=85.4V

. The fiqure shows the RMS current throuqh the circuit as a function of the driving frequency. What is the ohmic resistance of the RLC circuit? Please, notice that the resonance curve passes throuah a arid intersection point. Tries

(0)/(12)

If the capacitance of the capacitor is

C=367.0nF

, then what is the inductance

L

of the inductor? Tries

(0)/(12)

What is the power of the circuit when the circuit is at resonance? Tries 0/12
