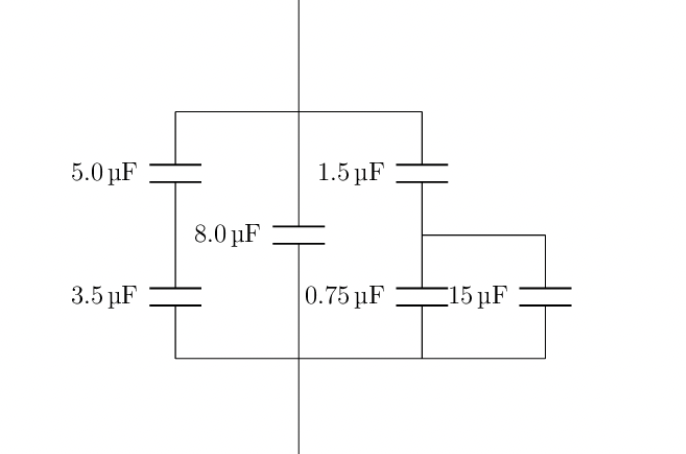

Assume that the the 6 capacitors pictured in Figure 2 are connected to a 20 volt power supply.
1. Determine the effective capacitance of the capacitors.
2. Determine the charge on each capacitor.
3. Determine the potential difference across each capacitor
Expert Answer
1. From the given circuit it can be observed that 0.75 uF and 15 uF are in parallel connectionC1p=15uF+0.75uFC1p=15.75uFAlso the parallel e
